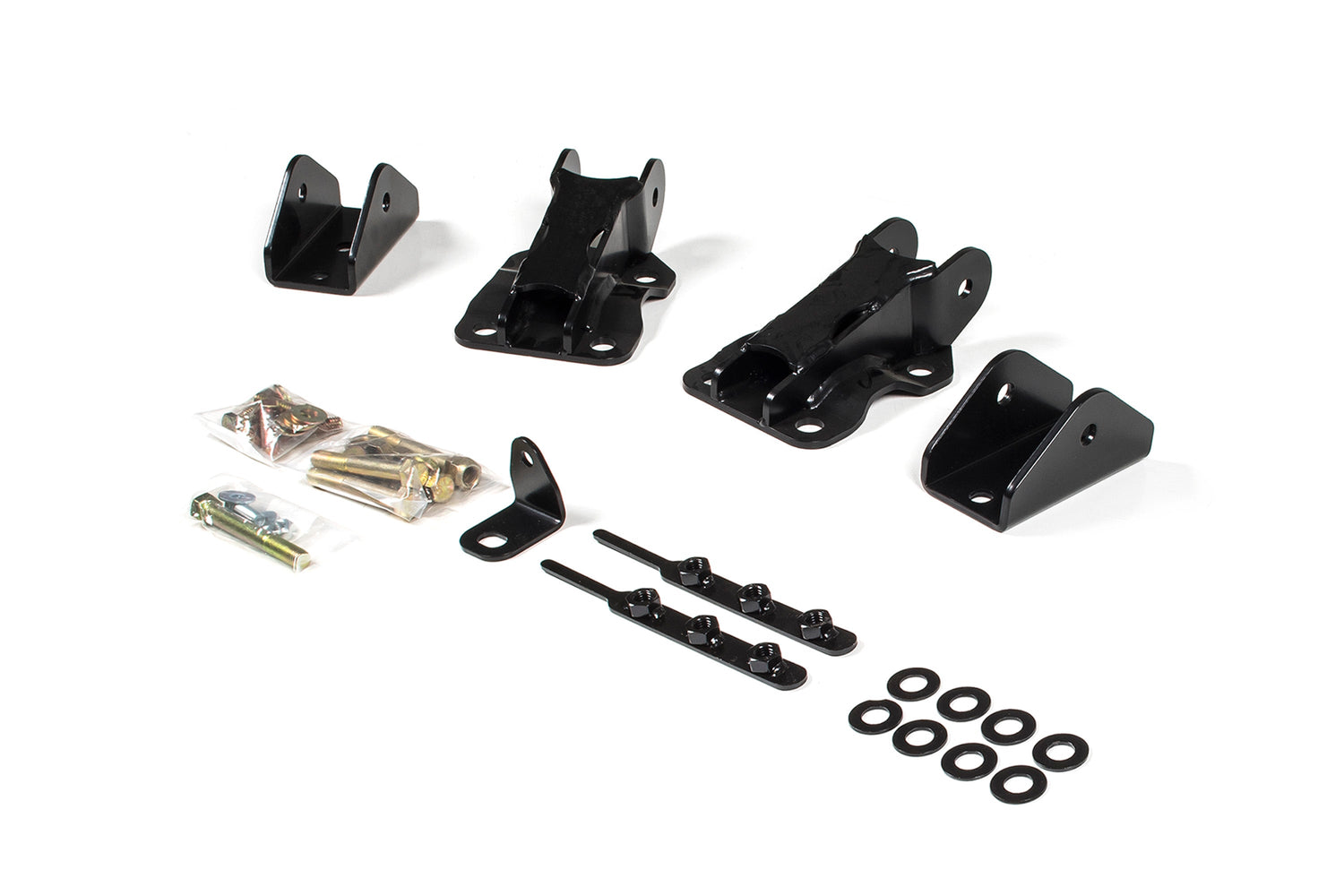

Recoil Traction Bar Mounting Kit - Ford F250 / F350 Super Duty (17-24) 4WD - 3.5-4 Inch Axle

We ship all items quickly and for free from our 4 USA warehouses to all 50 states

Fabricated from 2-inch OD x 3/16-inch wall steel tubing with a threaded bung welded in toward the axle and a CNC-machined end at the frame. Axle mount uses BDS's ultra-durable large-forged flex end and jam nut. Using a forged housing with large 1-1/4-nch x 12 threaded shank a single sided snap ring and 1-piece flex ball the flex ends are capable of up to 15 degrees of misalignment in either direction. At the frame end the bar uses a durometer specific polyurethane bushing and free floats in the traction bar utilizing a pair of dual stage internal compression springs and UHMW polyurethane bearings.

• Adjustable axle wrap control using dual-stage resistance springs
• Full floating traction bar design will not bind throughout the full range of wheel travel and/or hinder suspension articulation
• Spring preload can be adjusted on the vehicle without disassembling the traction bar
• Traction bar ends are greaseable and rebuildable
• Mounting brackets are bolt-on only requiring minor drilling for frame mount installation

Attributes:

• Brand Name: BDS Suspension
• GTIN: 00711745604278
• Installation Time: 3-4 Hrs
• Pvg Product Status: Active

Extended Information:

• Country of Origin: US
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 19.0000 x 12.0000 x 6.0000 inches
• Weight: 25.2500 lb
