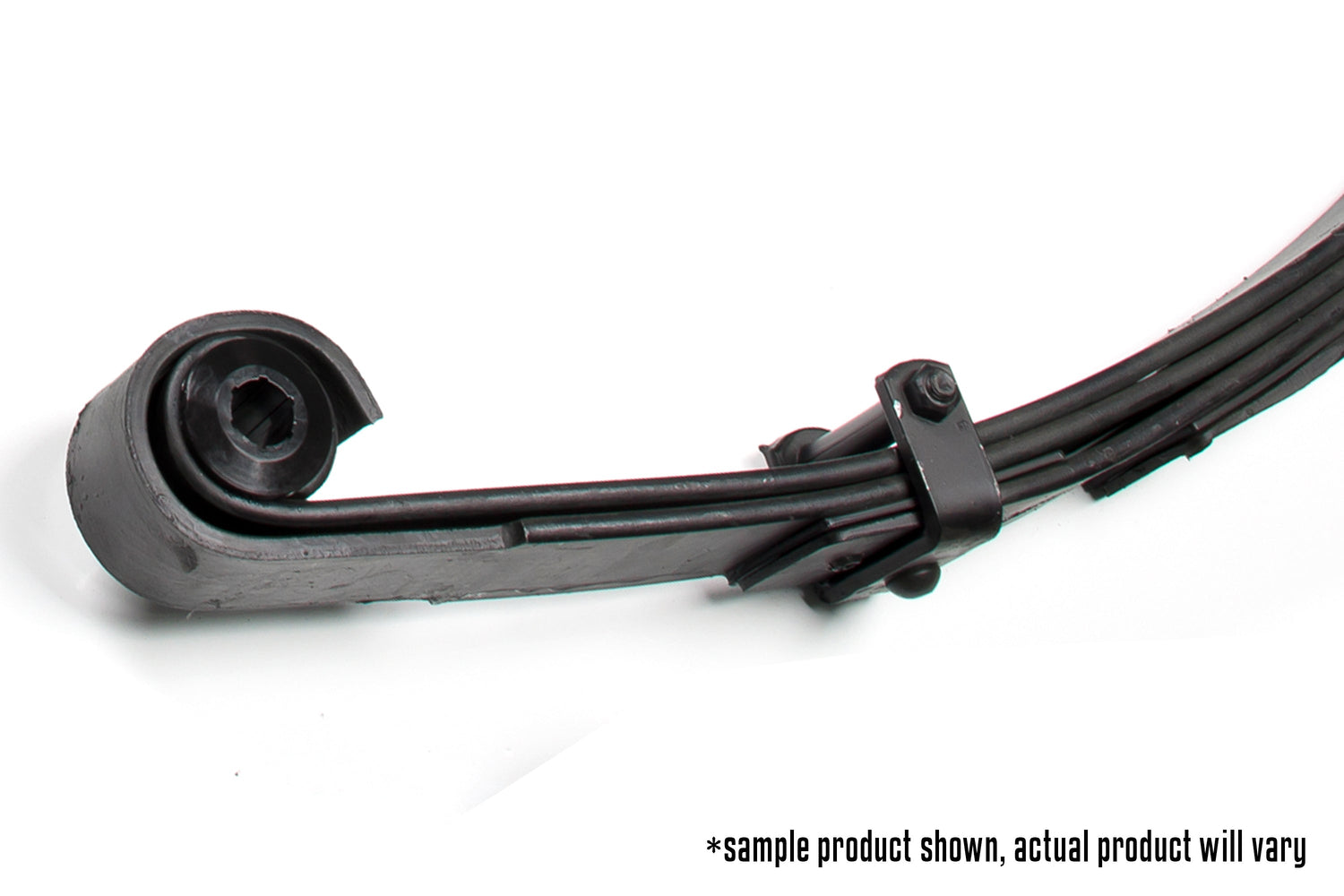

Front Leaf Spring - 2.5 Inch Lift - Ford F250/F350 Super Duty (99-04) & 4" Inch Lift Excursion (00-05) 4WD

Built to outperform BDS engineered the Glide-Ride leaf springs into a multi-leaf progressive spring rate design that provides a smooth ride with any load. This is accomplished with an exclusive triple-stage leaf spring design. Upgrading to BDS Glide-Ride leaf springs will reduce axle wrap and provide flexibility throughout the suspension cycle.Bushings arerequired and must be purchased separately.

• Tapered and roll-pointed leafs add flexibility and provide an even deflection rate
• Increased wheel travel and a softer ride from tapering allow smoother transition between leafs as compression takes place
• Higher articulation from bolt-style leaf alignment clamps prevents leafs from fanning out allowing leafs to twist and flex
• Multi-leaf progressive design for smooth ride
• Anti-friction pads provide a smooth and quiet ride
• BUSHINGS SOLD SEPARATELY

Attributes:

• Brand Name: BDS Suspension
• GTIN: 00658848611317
• Bushings Included: Yes
• Installation Time: 1-2 Hrs
• Leaf Quantity: 5
• Leaf Spring Arch Length: 6-1/8"
• Leaf Width: 3"
• Length: 52-3/8"
• Length Axis 1 Eye To Center Front0: 28"
• Maximum Lift: 2.5000
• Pvg Product Status: Active

Extended Information:

• Country of Origin: US
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 53.0000 x 8.0000 x 3.0000 inches
• Weight: 71.0000 lb
