Bilstein Shock Absorbers

We ship all items quickly and for free from our 4 USA warehouses to all 50 states

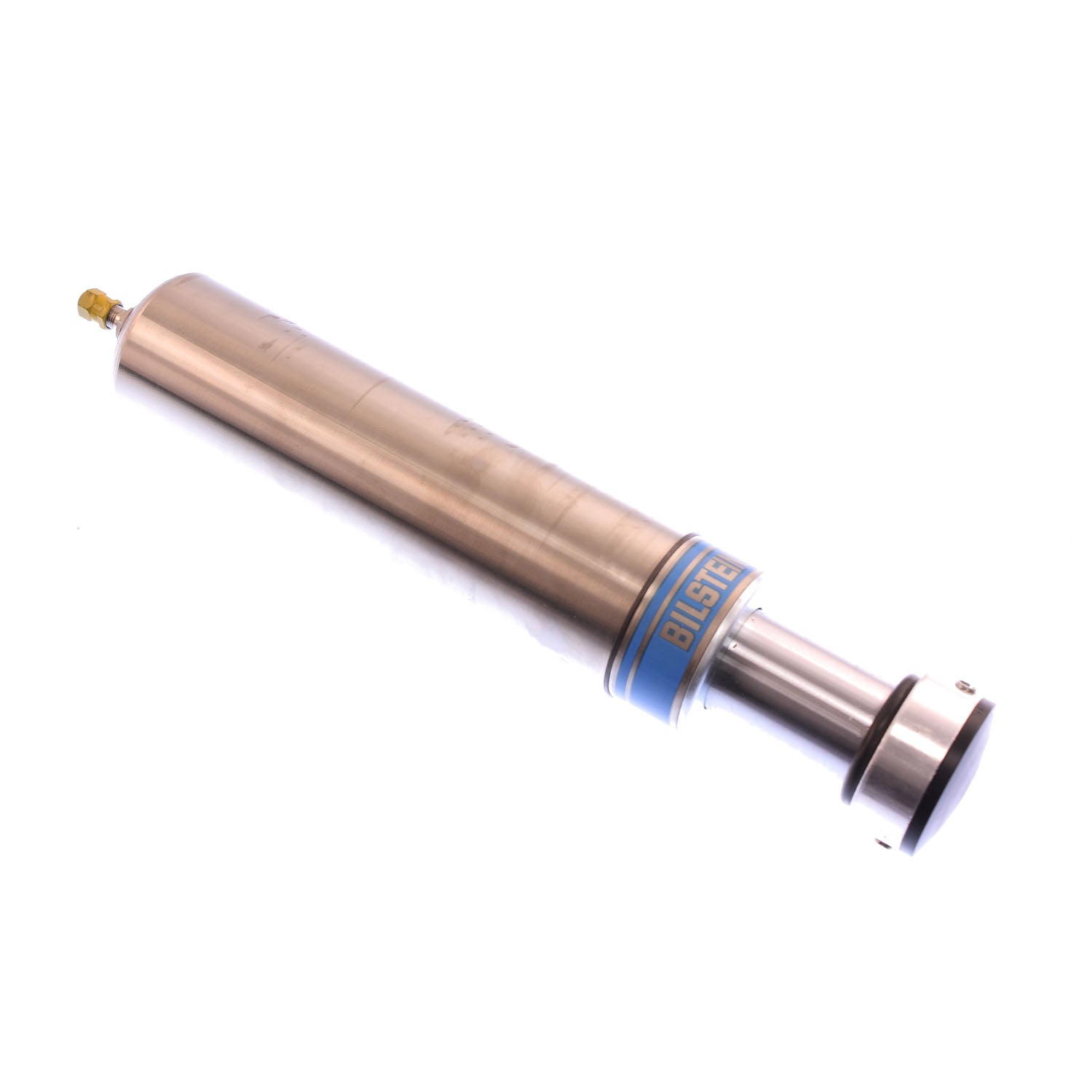

Bilstein M 9100 (Bump Stop) is designed to provide a significant increase in compression control over the last few inches of suspension travel on custom off-road applications. M 9100 (Bump Stop) is available in 3 different stroke lengths ranging from 2-4 inch travel that can accommodate a wide range of custom mount configurations. M 9100 (Bump Stop) has a replaceable strike pad for easy maintenance. This bump stop utilizes a nitrogen fill valve which can be used to fully adjust the compression force. When properly applied, M 9100 (Bump Stop) will effectively decelerate the suspension and prevent harsh bottoming on custom off-road applications.

• Filled with technology perfected over 3 decades of off-road dominance
• Filled with technology perfected over 3 decades of off-road dominance
• Monotube gas pressure design maximizes heat dissipation

Attributes:

• Brand Name: Bilstein
• GTIN: 00651860638478
• Body Design: Smooth Body (Non-Coilover)
• Body Diameter (ID): 46mm
• Collapsed Length (IN): 9.61
• Collapsed Length (IN) Rounded: 10
• Collapsed Length (MM): 244.1
• Compression @0.52m/s: Custom
• Extended Length (IN): 11.47
• Extended Length (IN) Rounded: 11
• Extended Length (MM): 291.3
• Finish: Nickel Plated
• Internal Design: Monotube
• Lower Mount Type: Special
• Mount Type: Special
• Optional Reservoir Clamp: N/A
• PartType: Bump Stop
• Rebound @0.52m/s: Custom
• Reservoir: No
• Segment: Motorsports
• Series: M 9100 (Bump Stop)
• Spring Seat Included: No
• Upper Mount Type: Special

Extended Information:

• Country of Origin: US
• Emissions : CARB Eligible
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 27.0000 x 6.0000 x 6.0000 inches
• Weight: 3.6600 POUNDS
