Bilstein Shock Absorbers 7.05 lb

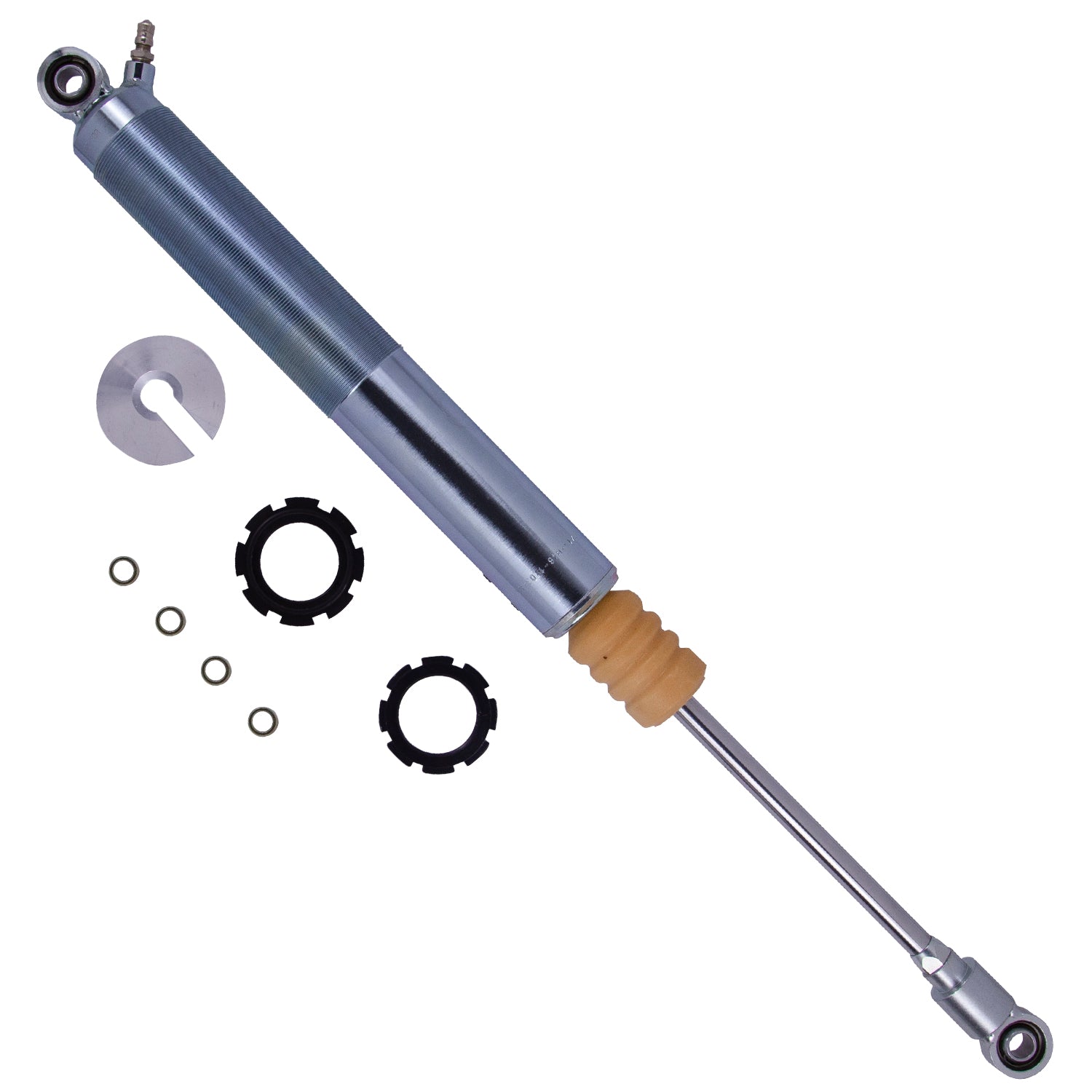

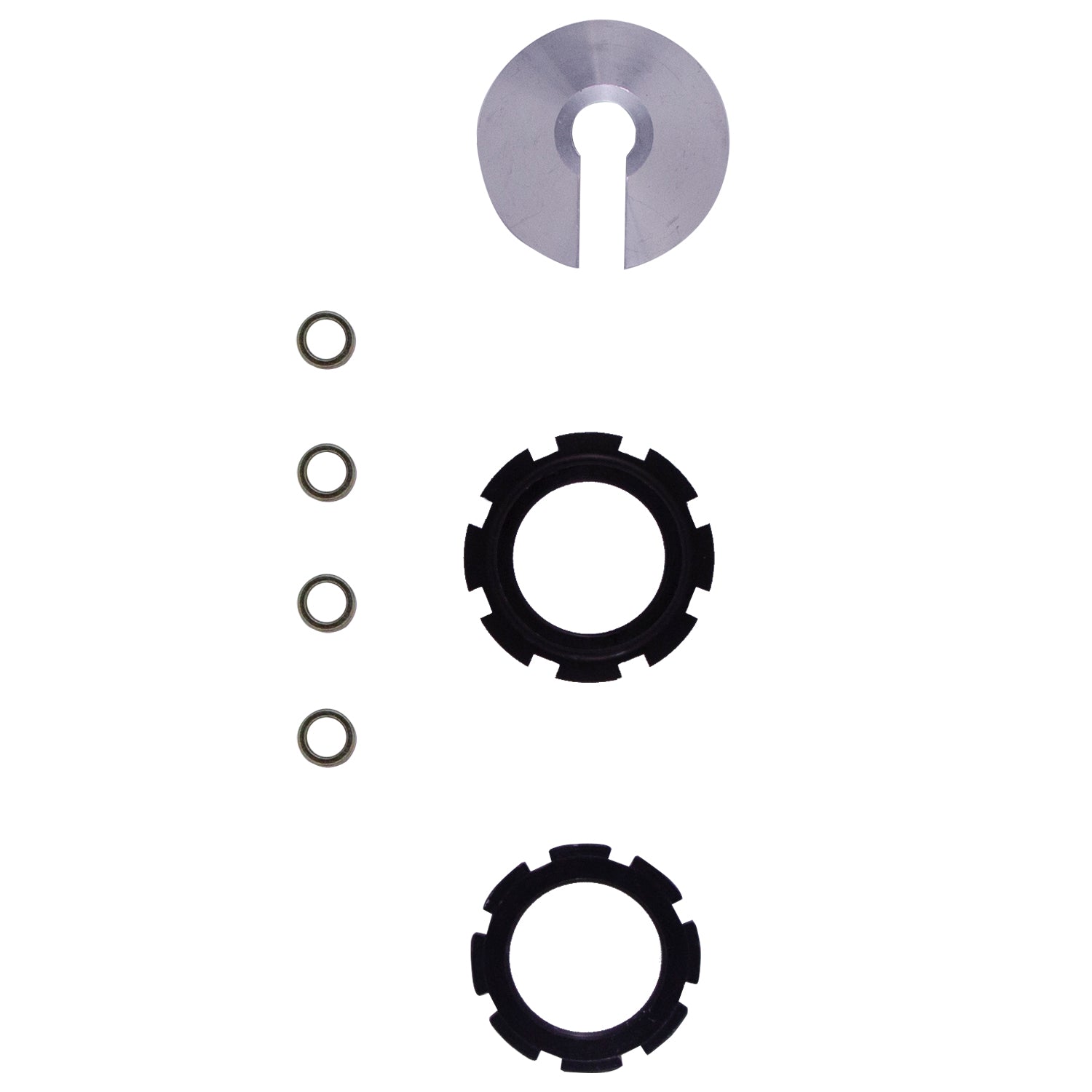

Bilstein M 7100 (Coilover) is designed for custom off-road motorsports and recreational applications. These coilovers are owner rebuildable and are available in remote reservoir or non-reservoir configurations. Each coilover is supplied with ½ inch heims and misalignment spacers for maximum durability in off-road conditions. M 7100 (Coilover) is offered in a 10 inch travel stroke with a choice of multiple valve settings and will accommodate a 2.5 inch ID coil spring. All service components are readily available and sold separately. M 7100 (Coilover) is the perfect choice for light weight off-road vehicles.

• 46mm monotube design ensures consistent, fade-free performance in all conditions
• 46mm monotube design ensures consistent, fade-free performance in all conditions
• Self-adjusting deflective disc valving reacts immediately to surface changes enabling maximum vehicle control

Attributes:

• Brand Name: Bilstein
• GTIN: 00790832512528
• Body Design: Threaded Body (Coilover)
• Body Diameter (ID): 46mm
• Collapsed Length (IN): 17.44
• Collapsed Length (IN) Rounded: 17
• Collapsed Length (MM): 443.0
• Compression @0.52m/s: 1000
• Extended Length (IN): 26.65
• Extended Length (IN) Rounded: 27
• Extended Length (MM): 676.9
• Finish: Nickel Plated with Clear Powder Coat
• Internal Design: Monotube
• Lower Mount Type: 1/2in Heim
• Mount Type: Eye-to-Eye
• Optional Reservoir Clamp: N/A
• PartType: Shocks / Struts
• Rebound @0.52m/s: 2550
• Reservoir: No
• Segment: Motorsports
• Series: M 7100 (Coilover)
• Spring Hardware: Single Rate (2.5in)
• Spring Seat Included: Yes
• Upper Mount Type: 1/2in Heim

Extended Information:

• Country of Origin: US
• Emissions : CARB Eligible
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 37.0000 x 7.0000 x 2.0000 inches
• Weight: 7.0500 POUNDS
