Bilstein Shock Absorbers

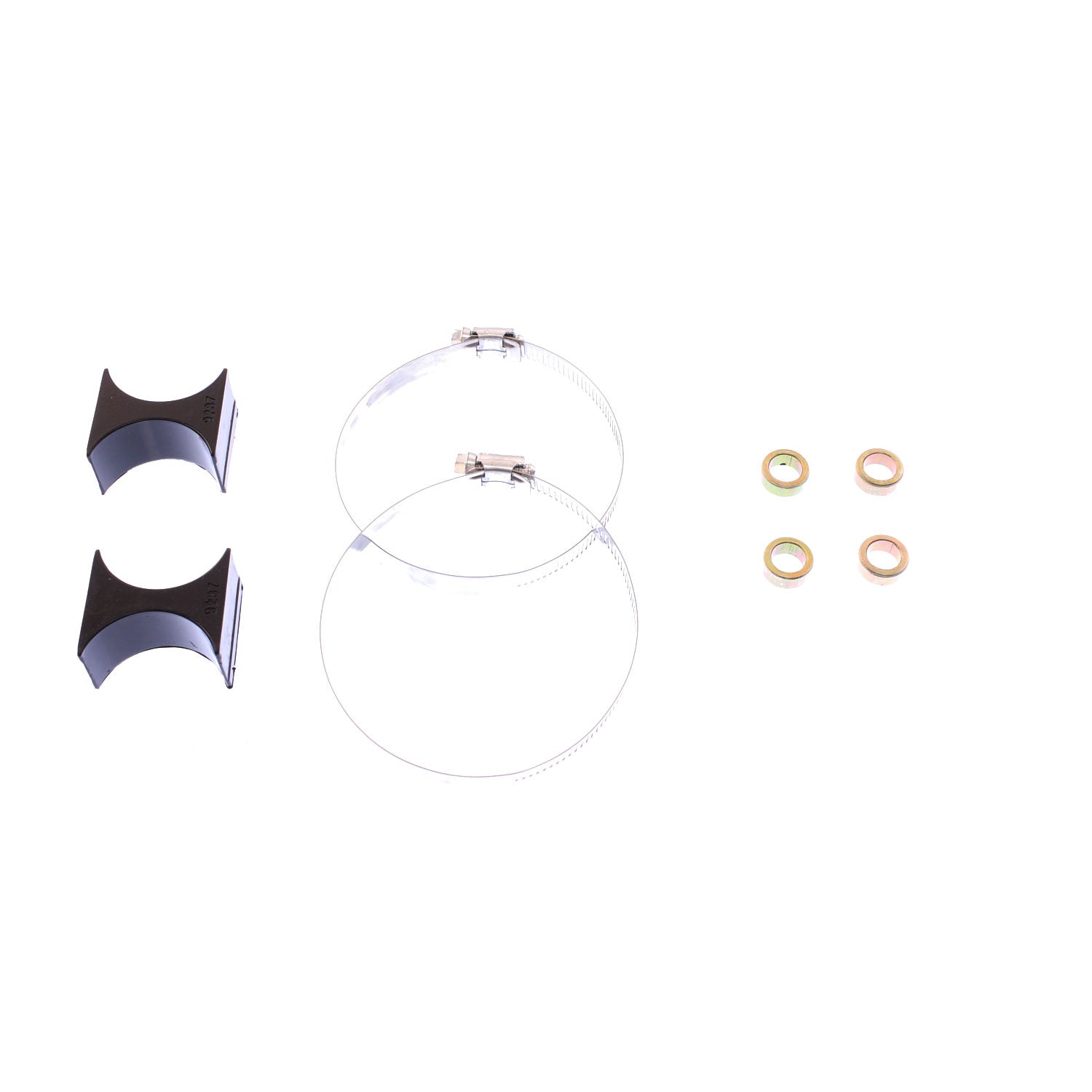

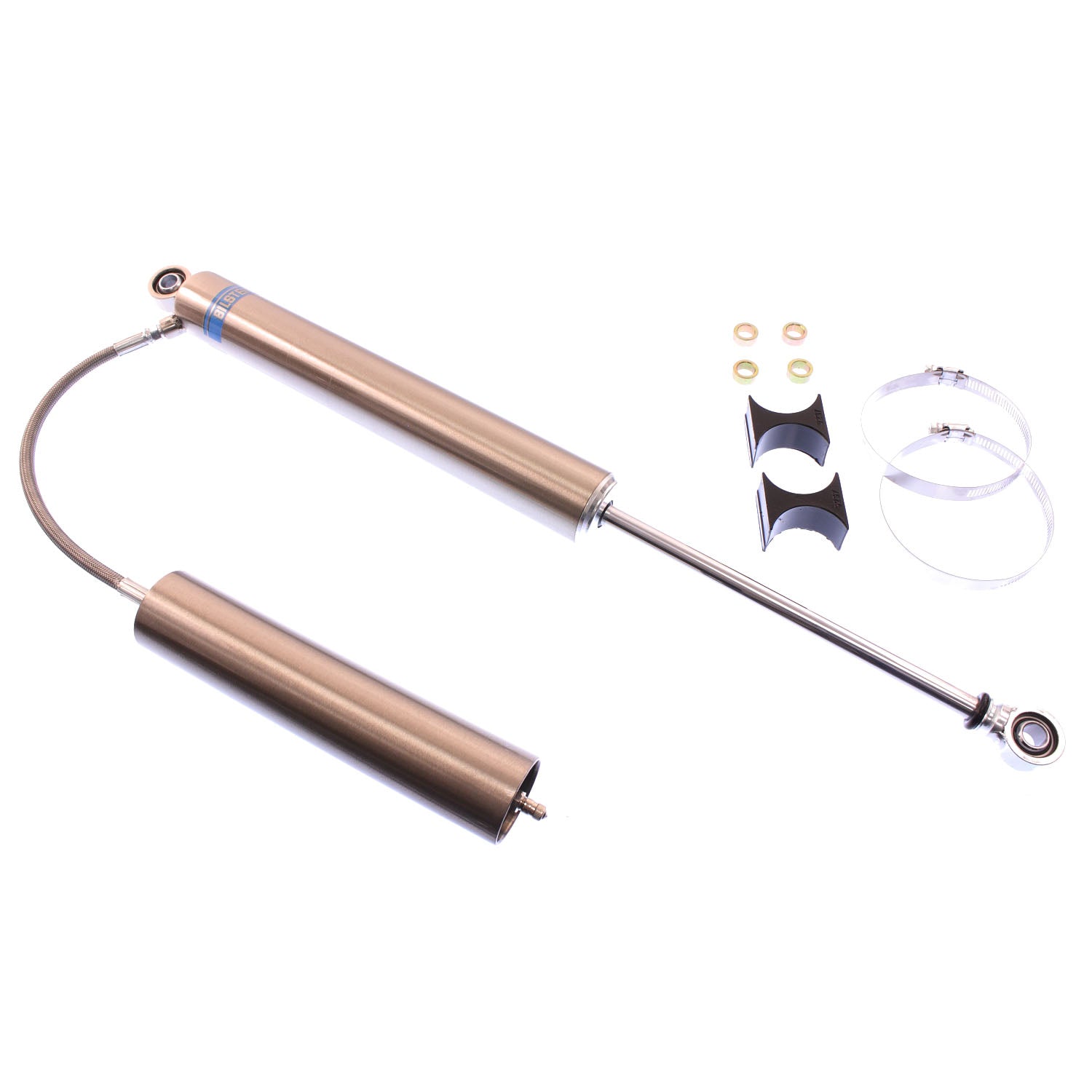

Bilstein M 7100 shock absorbers are designed for custom off-road motorsports and recreational applications. These shock absorbers are owner rebuildable and are available in remote reservoir or non-reservoir configurations. Each shock absorber is supplied with ½ inch heims and misalignment spacers for maximum durability in off-road conditions. M 7100 shock absorbers are available in a wide array of lengths and valve settings. Service components for M 7100 shock absorbers are readily available and sold separately. M 7100 shock absorbers will offer reliable performance that is customizable to meet specific demands.

• 46mm monotube design ensures consistent, fade-free performance in all conditions
• 46mm monotube design ensures consistent, fade-free performance in all conditions
• Self-adjusting deflective disc valving reacts immediately to surface changes enabling maximum vehicle control

Attributes:

• Brand Name: Bilstein
• GTIN: 00790832511026
• Body Design: Smooth Body (Non-Coilover)
• Body Diameter (ID): 46mm
• Collapsed Length (IN): 19.53
• Collapsed Length (IN) Rounded: 20
• Collapsed Length (MM): 496.1
• Compression @0.52m/s: 800
• Extended Length (IN): 31.10
• Extended Length (IN) Rounded: 31
• Extended Length (MM): 789.9
• Finish: Nickel Plated with Clear Powder Coat
• Internal Design: Monotube
• Lower Mount Type: 1/2in Heim
• Mount Type: Eye-to-Eye
• Optional Reservoir Clamp: N/A
• PartType: Shocks / Struts
• Rebound @0.52m/s: 3600
• Reservoir: Yes
• Segment: Motorsports
• Series: M 7100
• Spring Seat Included: No
• Upper Mount Type: 1/2in Heim

Extended Information:

• Country of Origin: United States
• Emissions : CARB Eligible
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 37.0000 x 7.0000 x 2.0000 inches
• Weight: 9.3700 POUNDS
