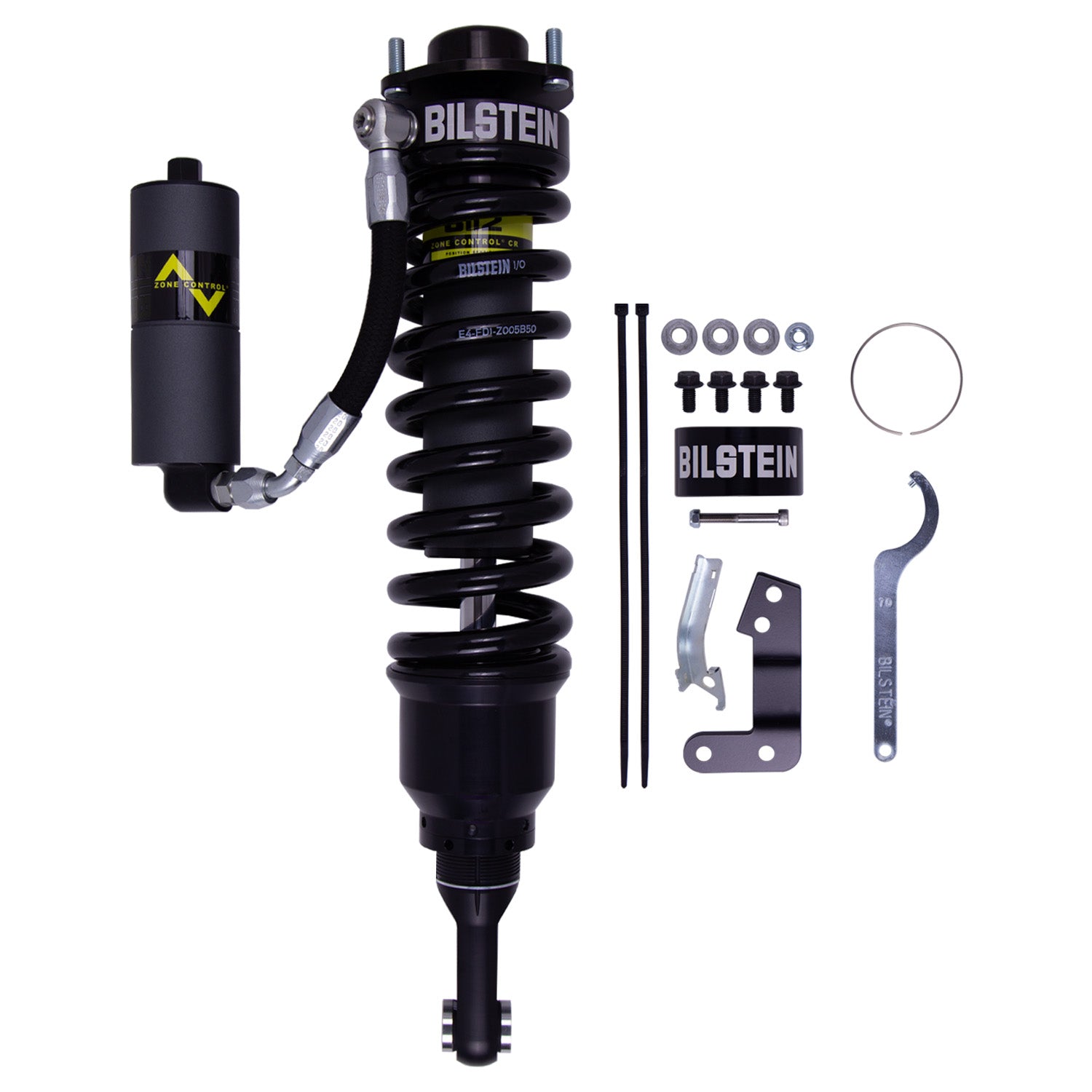

Bilstein B8 8112 (ZoneControl) CR suspension kits are a direct fit, position sensitive coilover designed for light trucks and SUV’s. ZoneControl CR is a revolutionary technology delivering position sensitive damping. The system incorporates a triple piston design, offering 3 stages of compression valving and 2 stages of rebound valving. The coilover module utilizes a threaded spring seat for ride height adjustability ranging from 0-3.8” (depending on application). The coilover is supplied with a remote reservoir for increased cooling and an accompanied, bolt-on anodized reservoir chassis mount. BILSTEIN B8 8112 (ZoneControl) CR position sensitive coilovers will offer unparalleled ride comfort during every day driving combined with maximum control over large suspension inputs.

• ZoneControl® CR: Position sensitive damping with 3 compression zones and 2 rebound zones, controlled by 3 independent pistons
• ZoneControl® CR: Position sensitive damping with 3 compression zones and 2 rebound zones, controlled by 3 independent pistons
• Triple piston design delivers comfort during every day driving conditions and maximum control under large suspension inputs

Attributes:

• Brand Name: Bilstein
• GTIN: 00651860915760
• Adjustable Damping: Non-Adjustable
• Body Design: Smooth Body (Coilover)
• Body Diameter (ID): 60mm
• Body Material: Steel
• Boot Included: No
• Collapsed Length (IN): 17.99
• Collapsed Length (MM): 456.9
• Extended Length (IN): 22.80
• Extended Length (MM): 579.1
• Finish: Dampers: EVO Grey / Springs: Black
• Internal Design: Monotube
• Lower Mount Type: Eye 14.1mm
• Optional Heavy Load Springs: 53-291387, 53-332837
• PartType: Shocks / Struts
• Reservoir: Yes
• Segment: Light Truck
• Series: B8 8112 (ZoneControl CR)
• Spring Seat Included: Yes
• Upper Mount Type: Special

Extended Information:

• Country of Origin: US
• Emissions : CARB Eligible
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 33.5000 x 11.8800 x 8.8800 inches
• Weight: 30.0000 POUNDS
