Bilstein Shock Absorbers

Fast & Free Shipping to all 50 states

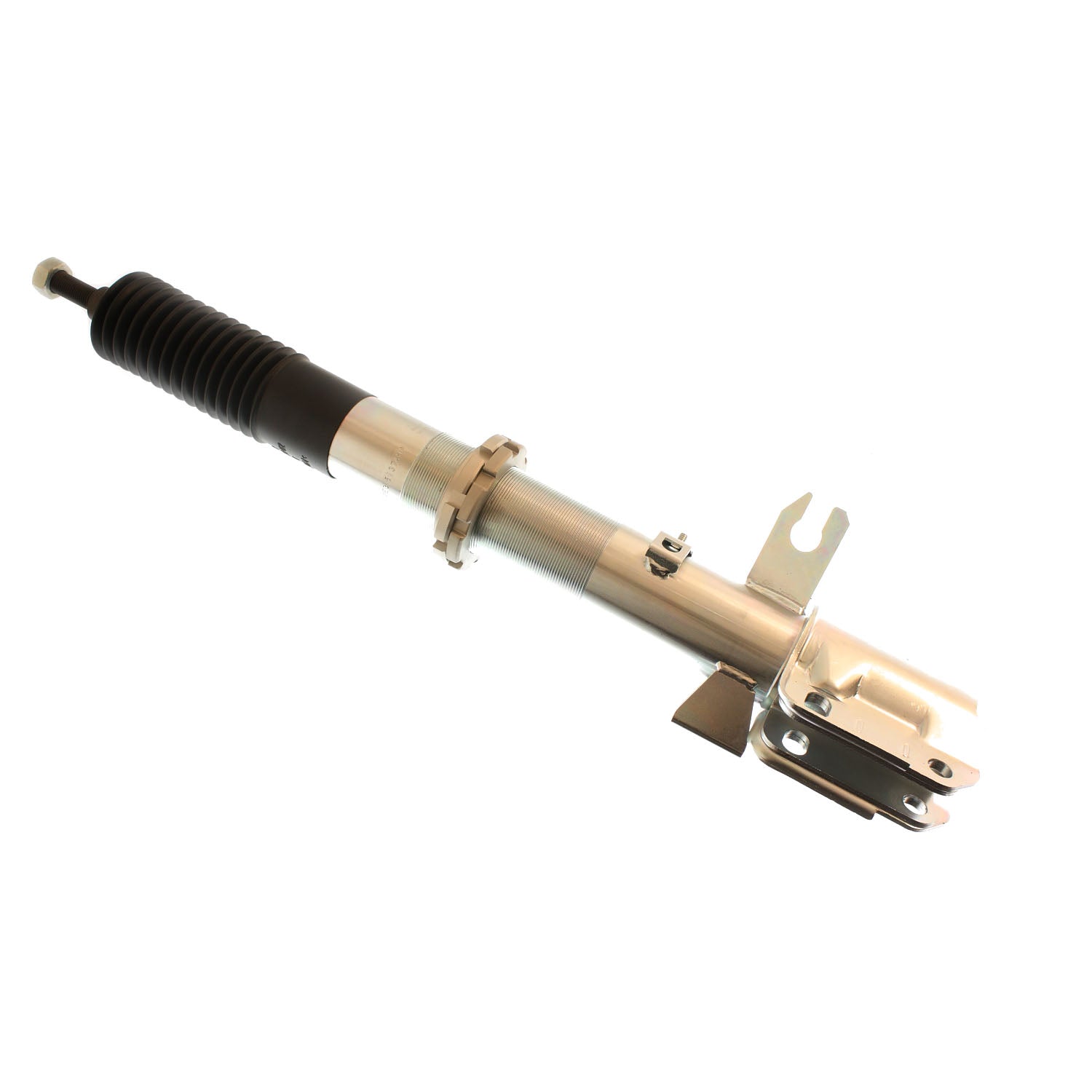

Bilstein Motorsports dampers are designed as a direct fit solution for a variety of motorsports applications. Each damper features monotube technology with proprietary spring steel valve discs tuned specifically to each application for superior on-track handling and control. Bilstein Motorsports dampers are ideal for racers requiring a direct fit solution with true race-proven performance.

• Monotube design ensures consistent, fade-free performance in all conditions
• Monotube design ensures consistent, fade-free performance in all conditions
• Larger working piston with deflective disc valving

Attributes:

• Brand Name: Bilstein
• GTIN: 00651860501567
• Adjustable Damping: Non-Adjustable
• Body Design: Threaded Body (Coilover)
• Body Diameter (ID): 46mm
• Body Material: Steel
• Boot Included: Black Bellows
• Collapsed Length (IN): 16.61
• Collapsed Length (MM): 422.0
• Compression @0.26m/s: 1440
• Extended Length (IN): 20.53
• Extended Length (MM): 521.5
• Finish: Zinc Plated
• Internal Design: Monotube
• Lower Mount Type: Bracket
• PartType: Shocks / Struts
• Piston Type: Digressive
• Position: Front
• Rebound @0.26m/s: 5370
• Segment: Motorsports
• Series: Motorsports
• Spring Hardware: N/A
• Spring Seat Included: Yes
• Upper Mount Type: Stem

Extended Information:

• Country of Origin: DE
• Emissions : CARB Eligible
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 26.8000 x 6.1000 x 6.1000 inches
• Weight: 10.2700 POUNDS
