Bilstein Shock Absorbers

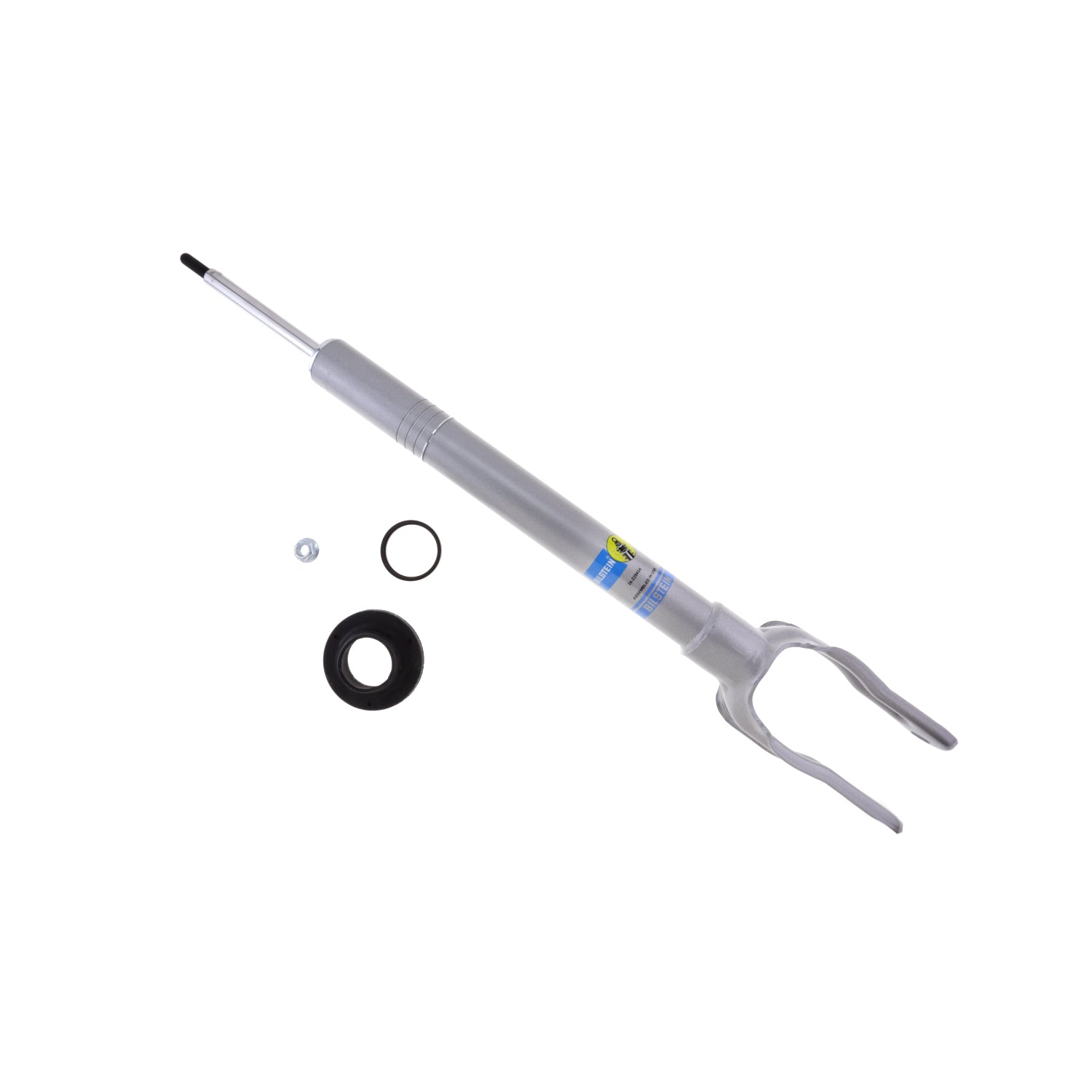

Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-3 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting.  Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.

• 46mm monotube design ensures consistent, fade-free performance in all conditions
• 46mm monotube design ensures consistent, fade-free performance in all conditions
• Practical alternative to coil spring spacers, with the benefit of Bilstein monotube technology

Attributes:

• Brand Name: Bilstein
• GTIN: 00651860713984
• Adjustable Damping: Non-Adjustable
• Body Design: Snap Ring Grooved Body (Coilover)
• Body Diameter (ID): 46mm
• Boot Included: No
• Collapsed Length (IN): 26.28
• Collapsed Length (MM): 667.6
• Extended Length (IN): 32.09
• Extended Length (MM): 815.0
• Finish: Silver Painted
• Internal Design: Monotube
• Lower Mount Type: Clevis
• PartType: Shocks / Struts
• Reservoir: No
• Segment: Light Truck
• Series: B8 5100 (Ride Height Adjustable)

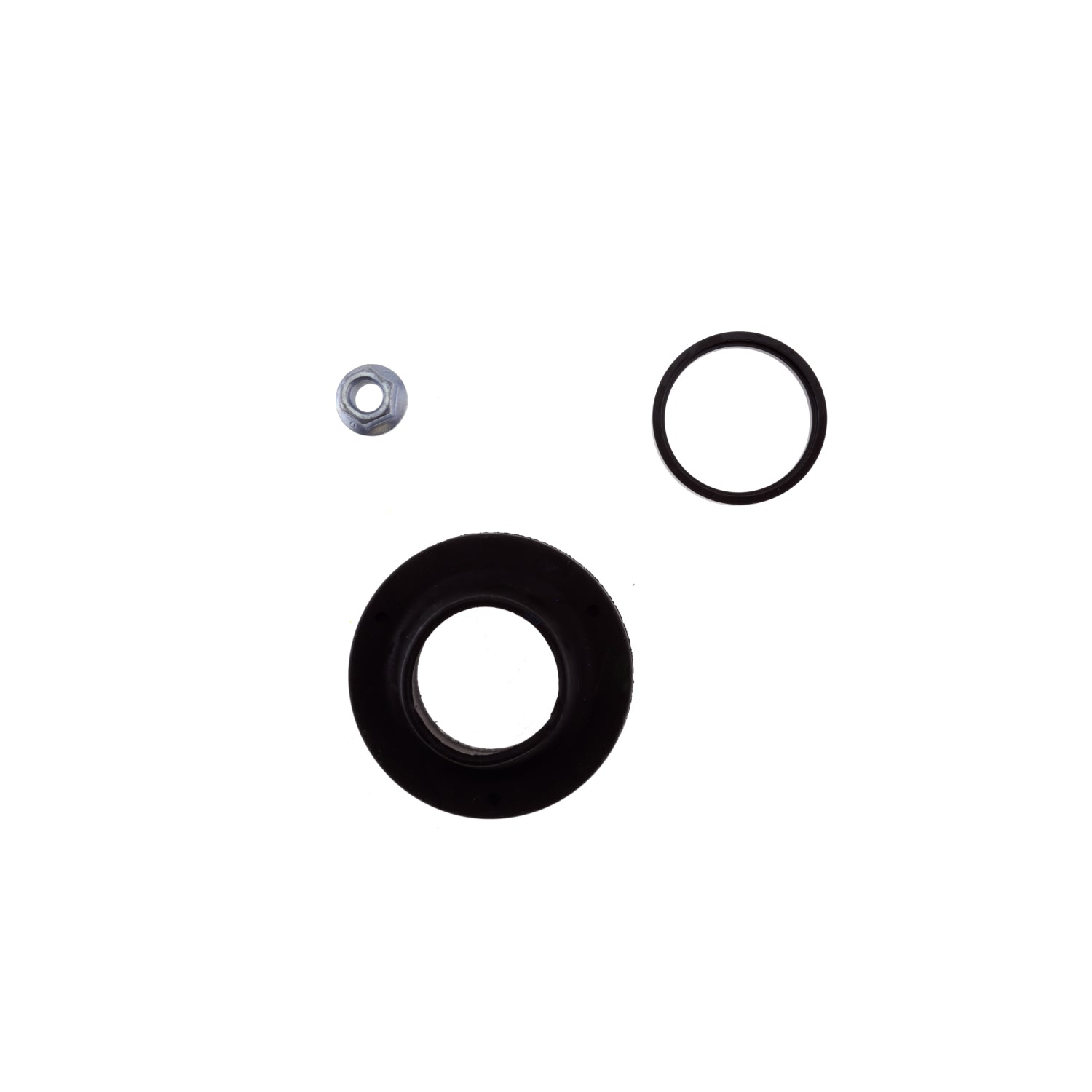

• Spring Seat Included: Yes
• Upper Mount Type: Stem

Extended Information:

• Country of Origin: US
• Emissions : 1
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 30.3000 x 6.5000 x 6.0000 inches
• Weight: 10.0800 lb

PDF:
