Bilstein Shock Absorbers 7.0 lb

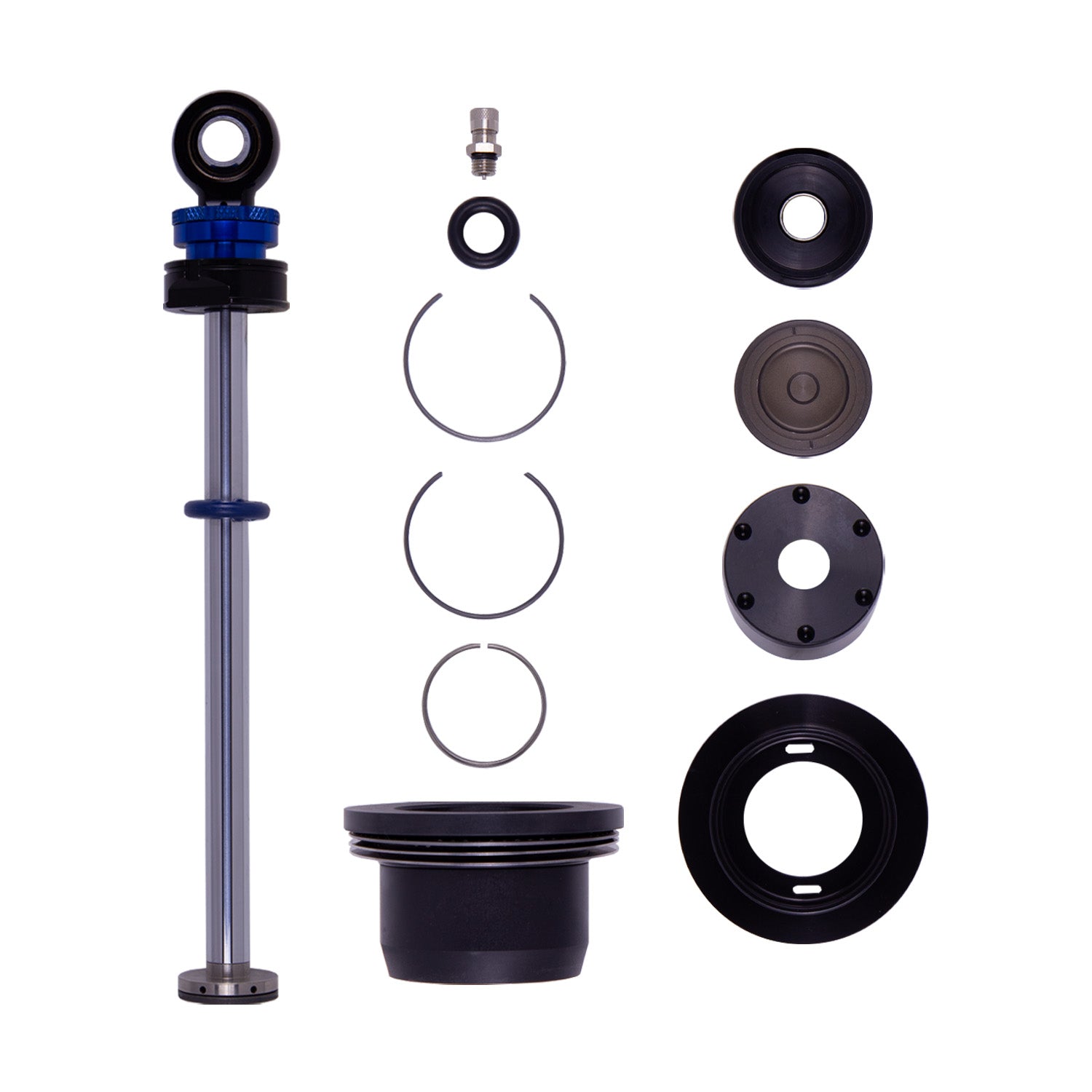

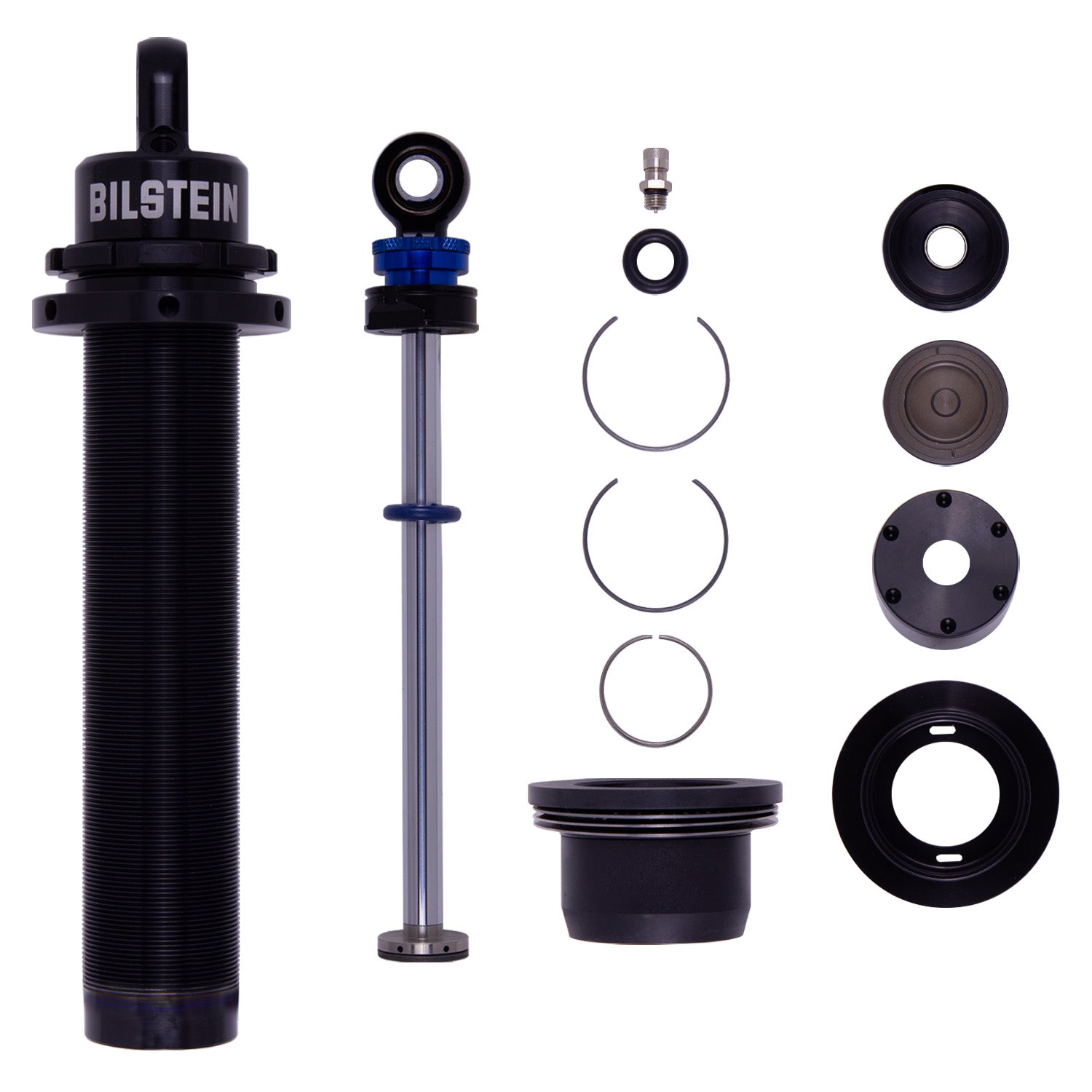

Bilstein AS2 Series shock absorbers are designed for motorsports applications and provide the user with the option to rebuild them. The modular aluminum design is offered in non-, single and double adjustable configurations which provide superior on-vehicle tuning capabilities. The threaded body provides precise height adjustments for coilover setups and dissipates heat quickly. The hard anodized coating reduces internal friction and improves strength and durability (pistons, piston bands and heims are sold separately to allow for a variety of combinations). AS2 Series shock absorbers are ideal for racers demanding a lightweight design with upgrade capability.

• 46mm lightweight extruded aluminum body for superior heat dissipation
• 46mm lightweight extruded aluminum body for superior heat dissipation
• Fine thread body provides precise adjustments in coilover applications

Attributes:

• Brand Name: Bilstein
• GTIN: 00651860923048
• Adjustable Damping: Single Adjustable - Rebound
• Body Design: Threaded Body Screw Top (Coilover)
• Body Diameter (ID): 46mm
• Body Material: Aluminum
• Boot Included: No
• Collapsed Length (IN): 14.24
• Collapsed Length (MM): 361.8
• Extended Length (IN): 21.39
• Extended Length (MM): 543.4
• Finish: Clear Anodized
• Internal Design: Monotube
• Lower Mount Type: 1/2in teflon heim
• PartType: Shocks / Struts
• Piston Type: Sold Separately
• Segment: Motorsports
• Series: AS2 Series
• Spring Hardware: B4-MKT-0008A00
• Spring Hardware 2: E4-FT4-Z060A00
• Spring Hardware 3: E4-MSG-0083A00
• Spring Seat Included: Yes
• Upper Mount Type: 1/2in teflon heim

Extended Information:

• Country of Origin: US
• Emissions : CARB Eligible
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 29.5000 x 3.5000 x 3.5000 inches
• Weight: 7.0000 lb
