Bilstein Shock Absorbers 29.1 lb

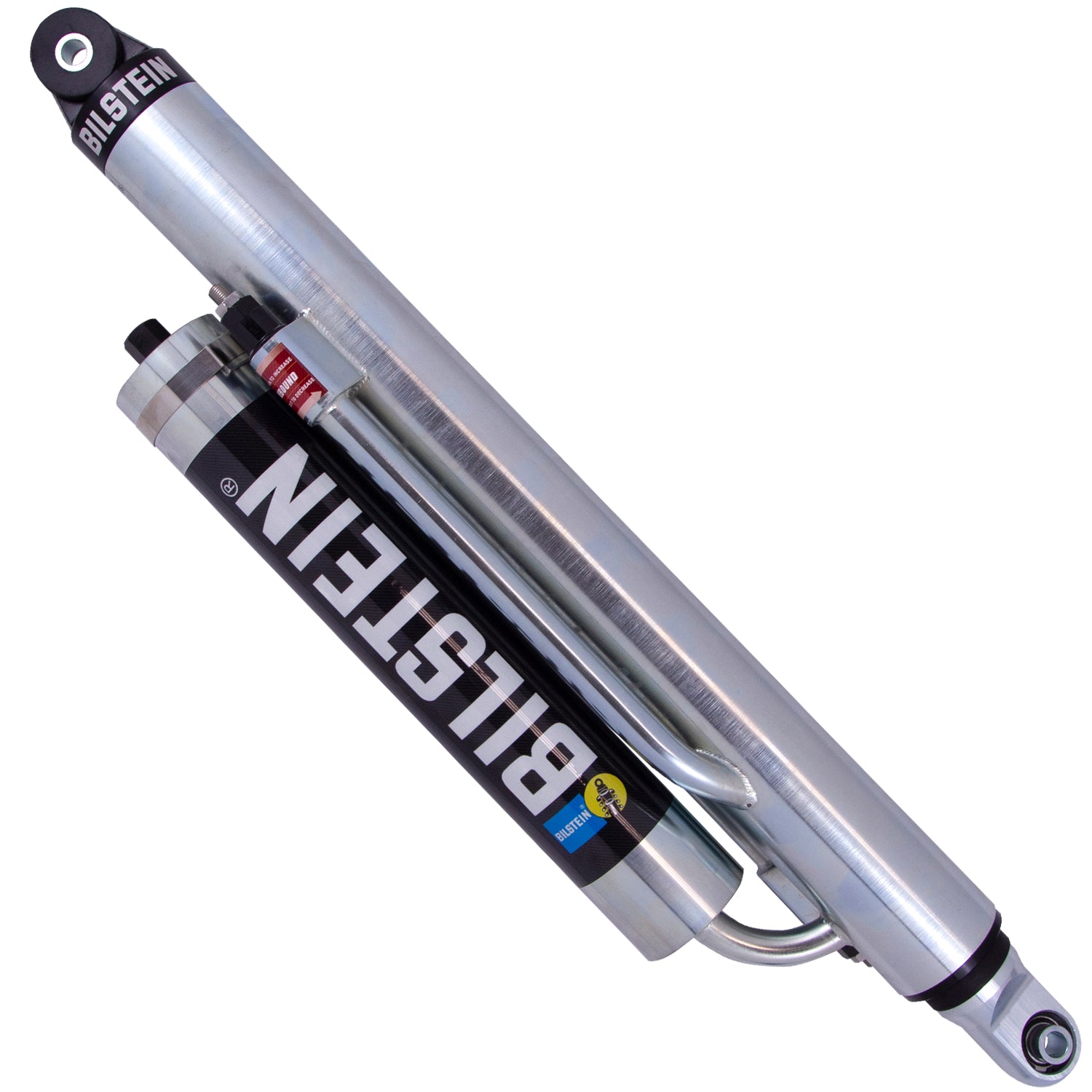

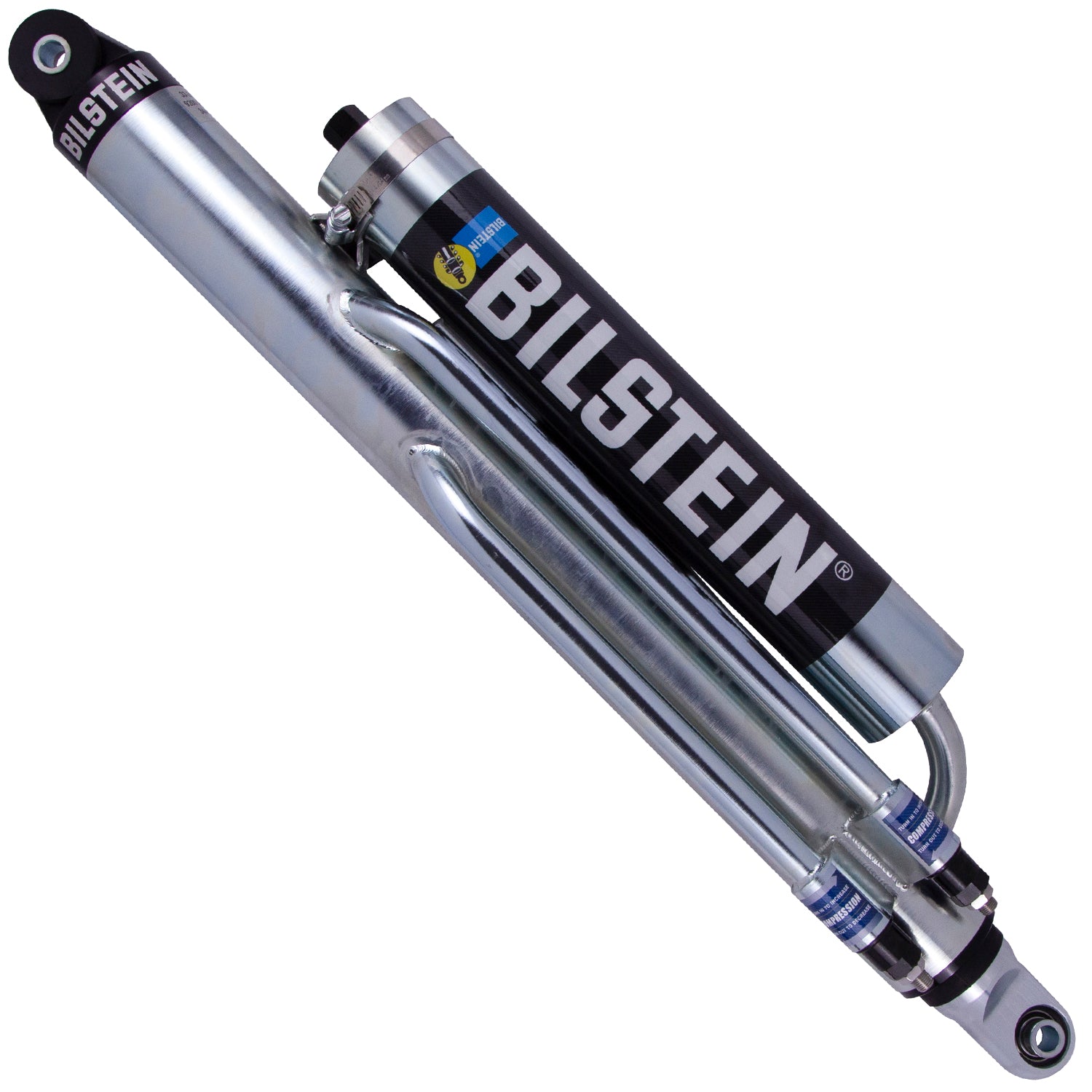

Bilstein M 9200 (Bypass) shock absorbers feature position sensitive damping and are designed specifically for professional off-road motorsports. M 9200 (Bypass) shock absorbers are available in either 3-tube or 4-tube configurations and include a piggyback reservoir. M 9200 (Bypass) shock absorbers are for custom fitments and are sold by length. These shock absorbers are completely owner rebuildable and revalvable. All service components are readily available and sold separately. Utilizing an M 9200 (Bypass) shock absorber is the easiest and most effective way to tune an off-road suspension for ultimate performance.

• Available in 60mm, 70mm and 83mm monotubes
• Available in 60mm, 70mm and 83mm monotubes
• 4-tube, position sensitive with adjustable rebound and compression

Attributes:

• Brand Name: Bilstein
• GTIN: 00651860796765
• Body Design: 3-Tube Bypass Screw Top
• Body Diameter (ID): 60mm
• Boot Included: N/A
• Collapsed Length (IN): 26.50
• Collapsed Length (IN) Rounded: 27
• Collapsed Length (MM): 673.1
• Compression @0.52m/s: Custom
• Extended Length (IN): 42.50
• Extended Length (IN) Rounded: 43
• Extended Length (MM): 1079.5
• Finish: Zinc Plated
• Internal Design: Monotube
• Lower Mount Type: Eye .5x1.5in
• Mount Type: Eye-to-Eye
• Optional Reservoir Clamp: N/A
• PartType: Shocks / Struts
• Position: Left
• Rebound @0.52m/s: Custom
• Reservoir: Yes
• Segment: Motorsports
• Series: M 9200 (Bypass)
• Spring Seat Included: No
• Upper Mount Type: Eye .5x1.5in

Extended Information:

• Country of Origin: US
• Emissions : CARB Eligible
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 33.5000 x 11.8800 x 8.8800 inches
• Weight: 29.1000 lb

PDF:
