Bilstein Shock Absorbers 12.61 lb

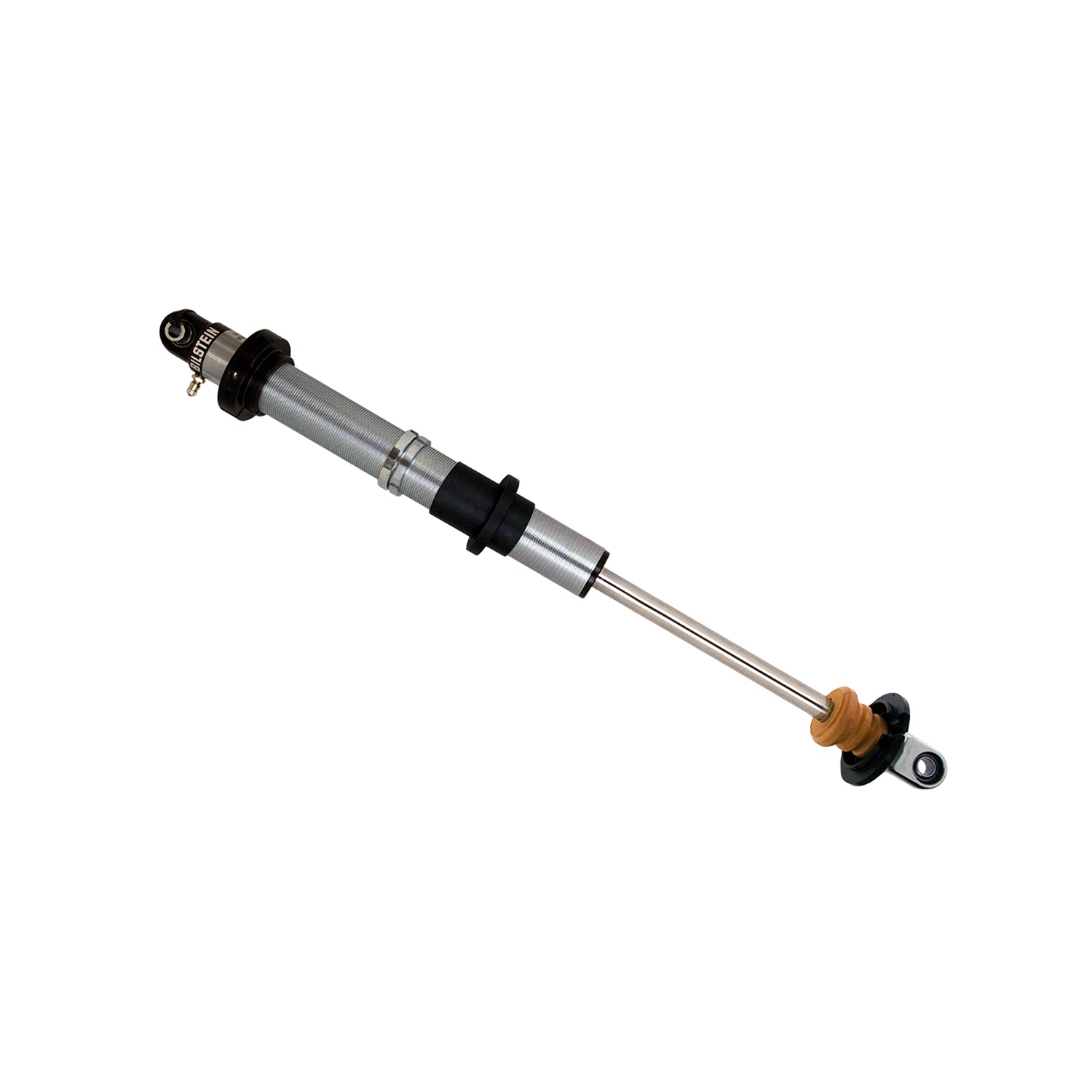

Bilstein M 9200 (Coil Carrier) is designed specifically for professional off-road competition. M 9200 (Coil Carrier) utilize a fully adjustable dual rate spring hardware system that will compliment a wide array of industry standard 2.5 inch ID coilover springs. This coil carrier will not provide damping, but will sustain the weight of the vehicle at the adjusted ride height. These coil carriers are sold by length and are for custom applications. M 9200 (Coil Carrier) offers the ability to efficiently adjust spring rates to achieve the optimum performance.

• 46mm monotube design
• 46mm monotube design
• Designed to hold the coils in place

Attributes:

• Brand Name: Bilstein
• GTIN: 00651860750668
• Body Design: Threaded Body (Coilover)
• Body Diameter (ID): 46mm
• Boot Included: N/A
• Collapsed Length (IN): 19.50
• Collapsed Length (IN) Rounded: 20
• Collapsed Length (MM): 495.3
• Compression @0.52m/s: Custom
• Extended Length (IN): 31.50
• Extended Length (IN) Rounded: 32
• Extended Length (MM): 800.1
• Finish: Zinc Plated
• Internal Design: Monotube
• Lower Mount Type: Eye .5x1.5in
• Mount Type: Eye-to-Eye
• Optional Reservoir Clamp: N/A
• PartType: Shocks / Struts
• Rebound @0.52m/s: Custom
• Reservoir: Yes
• Segment: Motorsports
• Series: M 9200 (Coil Carrier)
• Spring Seat Included: No
• Upper Mount Type: Eye .5x1.5in

Extended Information:

• Country of Origin: United States
• Emissions : CARB Eligible
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 36.0000 x 7.5000 x 4.5000 inches
• Weight: 12.6100 lb
