Bilstein Shock Absorbers 4.06 lb

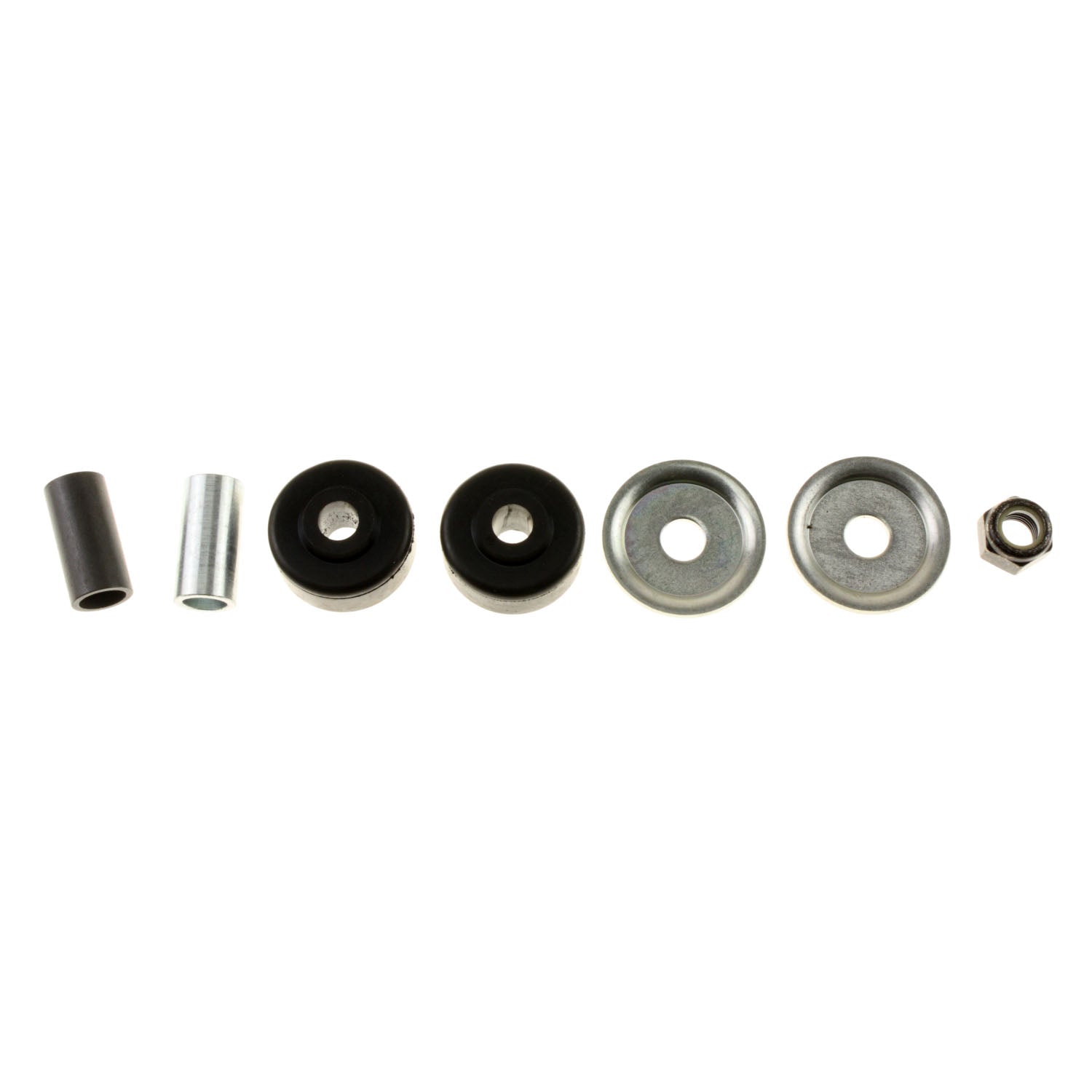

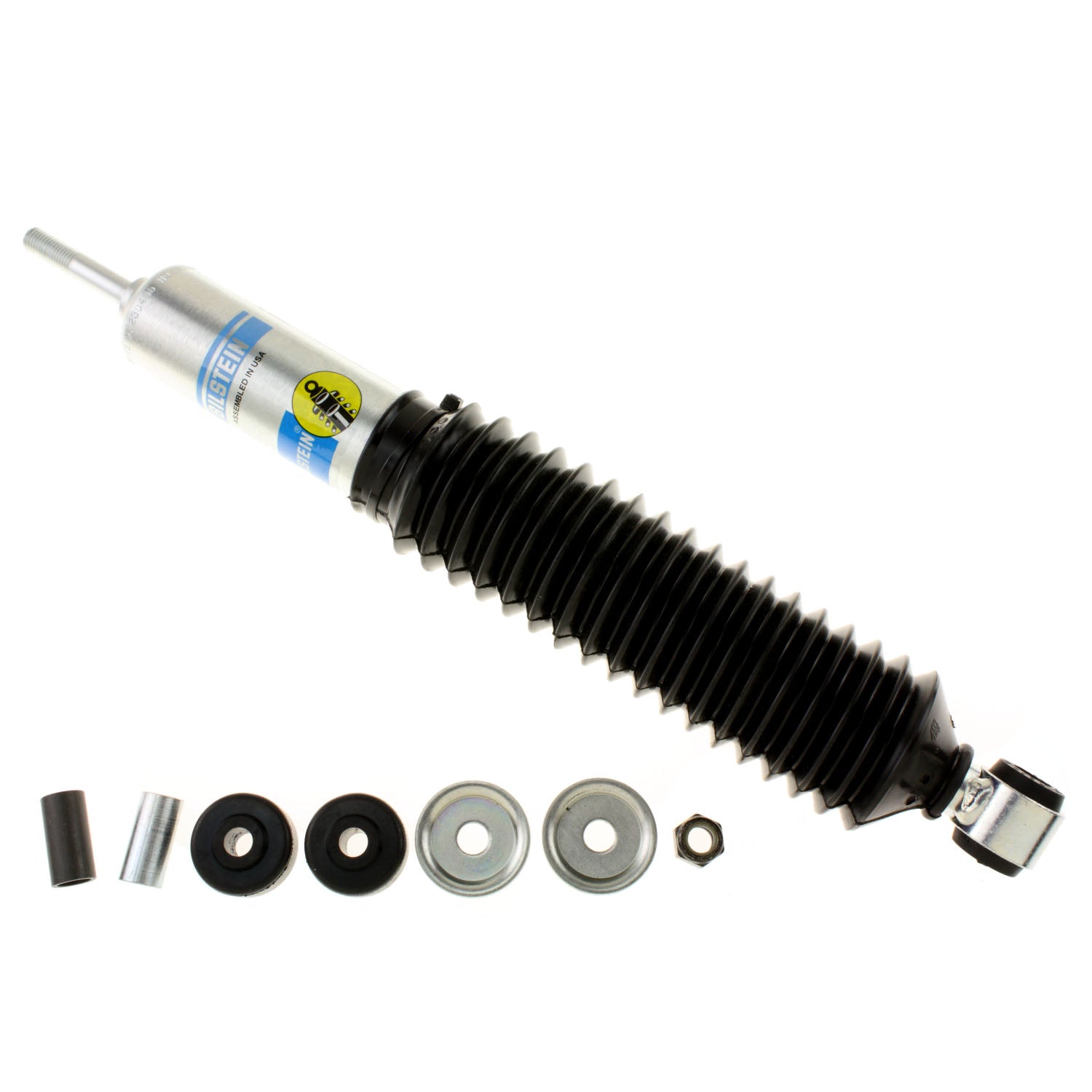

Bilstein B8 5125 shock absorbers are designed for custom applications and are a perfect solution for vehicles that do not have a direct Bilstein fitment. These high gas pressure monotube shock absorbers are sold by various lengths and valve rates to accommodate a wide range of uses and custom fitments. All B8 5125 shock absorbers come equipped with industry standard 5/8 inch hour glass bushings and are available in either an eye/eye or stem/eye mount configuration. The shock absorbers feature a 46mm piston with self-adjusting deflective disc valving. Bilstein B8 5125 shock absorbers are the ideal choice for custom suspension builders.

• 46mm monotube design ensures consistent, fade-free performance in all conditions
• 46mm monotube design ensures consistent, fade-free performance in all conditions
• Patented digressive valving instantly reacts to changing surface conditions

Attributes:

• Brand Name: Bilstein
• GTIN: 00651860729282
• Adjustable Damping: Non-Adjustable
• Body Design: Smooth Body (Non-Coilover)
• Body Diameter (ID): 46mm
• Boot Included: Black Bellows
• Collapsed Length (IN): 10.75
• Collapsed Length (IN) Rounded: 11
• Collapsed Length (MM): 273.0
• Compression @0.52m/s: 840
• Extended Length (IN): 16.40
• Extended Length (IN) Rounded: 16
• Extended Length (MM): 416.5
• Finish: Zinc Plated
• Internal Design: Monotube
• Lower Mount Type: Eye 5/8in
• Mount Type: Stem-to-Eye
• PartType: Shocks / Struts
• Rebound @0.52m/s: 3695
• Reservoir: No
• Segment: Light Truck
• Series: B8 5125
• Spring Seat Included: No
• Upper Mount Type: Stem

Extended Information:

• Country of Origin: MX
• Emissions : CARB Eligible
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 26.8000 x 2.9500 x 2.9500 inches
• Weight: 4.0600 lb
