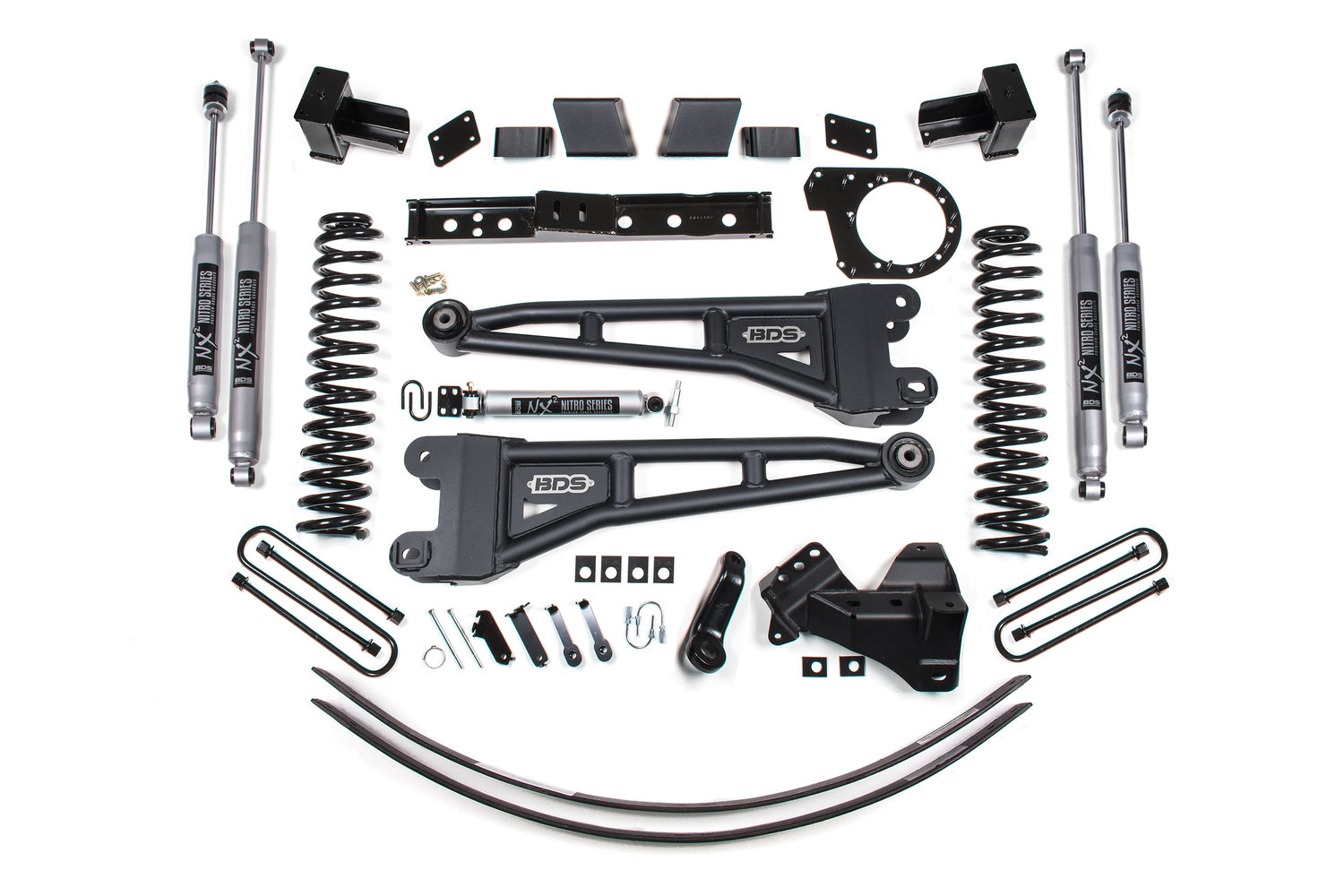

6 Inch Lift Kit W/ Radius Arm - Ford F250/F350 Super Duty (17-19) 4WD - Diesel

At this height driveline adjustments are necessary to allow the use of the factory driveshafts so a precision-built transfer-case indexing ring featuring ARP-studs can clock the transfer case and improve the front driveline operating angle. Additionally a high clearance transmission crossmember supplied to allow sufficient clearance.

• Easy 100% Bolt-on installation
• Pro-Ride dual rate coil springs provide a remarkable ride through any terrain
• Heavy duty tubular steel radius arms that correct caster while maximizing ground clearance
• Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
• Fabricated steel blocks provide level stance from front to rear
• Standard NX2 Nitro shocks with vehicle-specific valving for better control

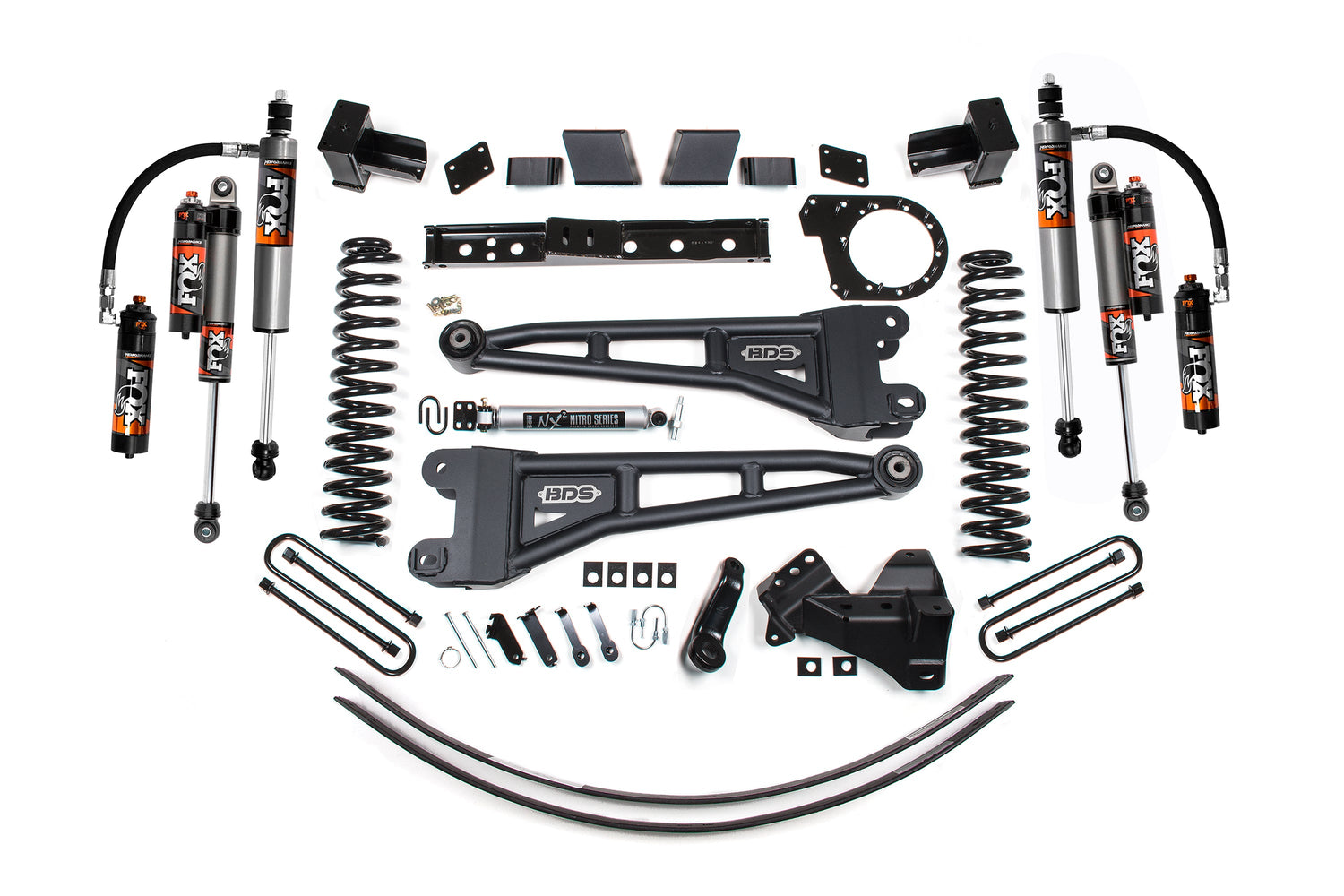

• Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road

Attributes:

• Brand Name: BDS Suspension
• GTIN: 00840416414042
• Front Lift Height: 6
• Front Lift Method: Coil Spring
• Installation Difficulty: moderate
• Installation Time: 6 Hrs
• Installation Tools: 30mm socket-40mm Socket-Basic Hand Tools-drill-jack hydraulic-puller pitmanArm
• Rear Lift Height: 5
• Rear Lift Method: Block
• Rear Lift Option: 5 Inch Block with 3 Leaf Main
• Shocks Included0: Yes

Extended Information:

• Country of Origin: US
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Weight: 0 lb

Free Shipping
