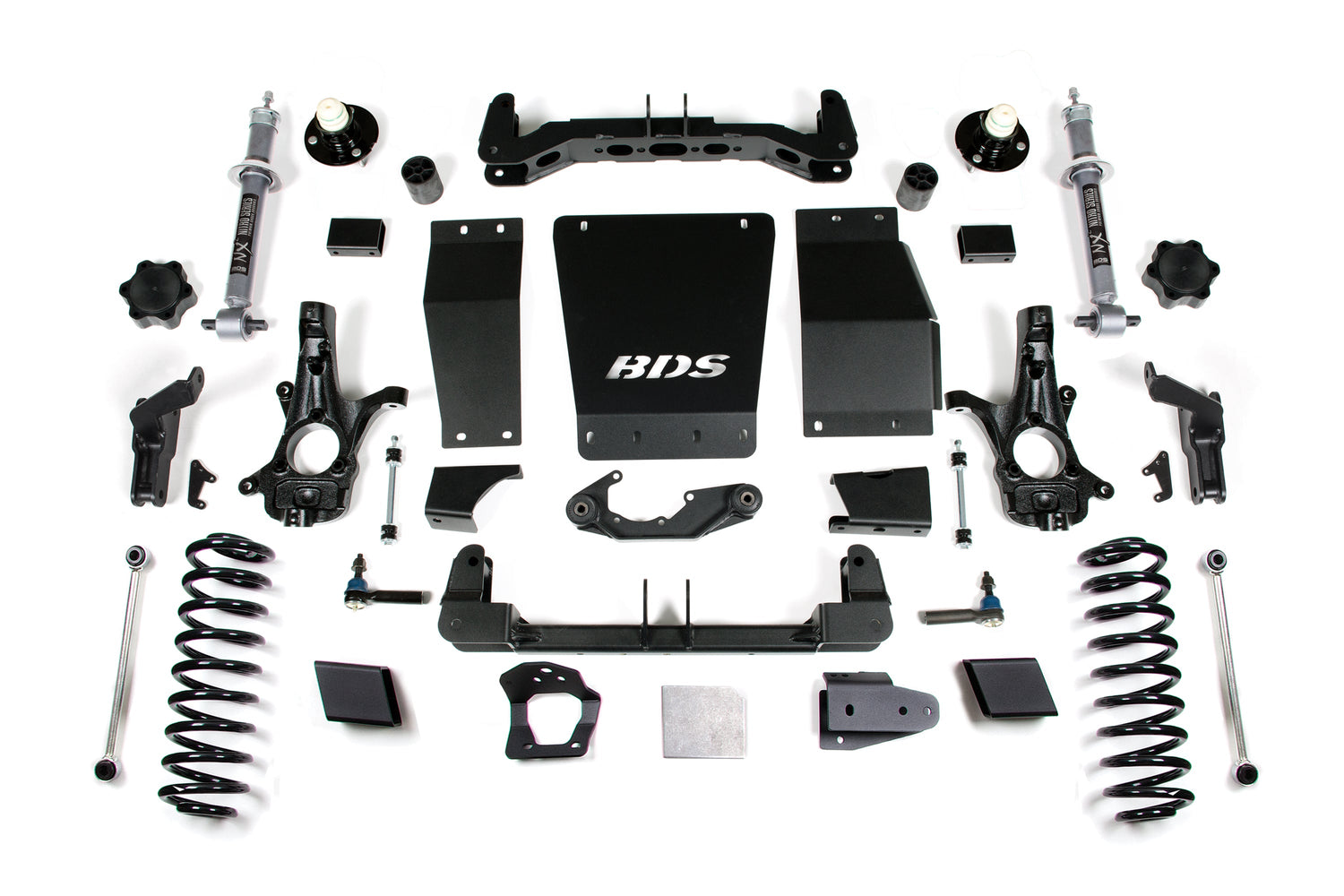

6 Inch Lift Kit - Chevy/GMC Suburban- Tahoe- Yukon/XL 1500 (15-19) 4WD - Autoride Equipped

BDS corrects steering geometry at the new taller ride height using a pair of high-strength CNC machined ductile cast iron steering knuckle design to work with factory tie rod ends to maintain steering angles for proper function and ESC compatibility.

• Includes shock relocation brackets to maintain factory Autoride shocks
• High clearance crossmember design maximizes ground clearance
• Robust steering knuckles maintain ESC system compliance
• High-strength replacement upper control arms provide durability and serviceability
• HD skid plate system improved offroad protection
• Multipoint differential relocation brackets to secure the front axle and improve CV angles
• Factory Protection Plus drivetrain warranty included

Attributes:

• Brand Name: BDS Suspension
• GTIN: 00840416420722
• Factory Control Arm Type: cast steel
• Front Lift Height: 6
• Front Lift Method: Cross Member
• Installation Difficulty: difficult
• Installation Time: 8 Hrs
• Installation Tools: 36mm Socket-Cut Off Wheel or Equiv-saw reciprocating-strutCompressor-welder
• Rear Lift Height: 5
• Rear Lift Method: Coil Springs
• Shocks Included0: No

Extended Information:

• Country of Origin: US
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Weight: 0 lb
