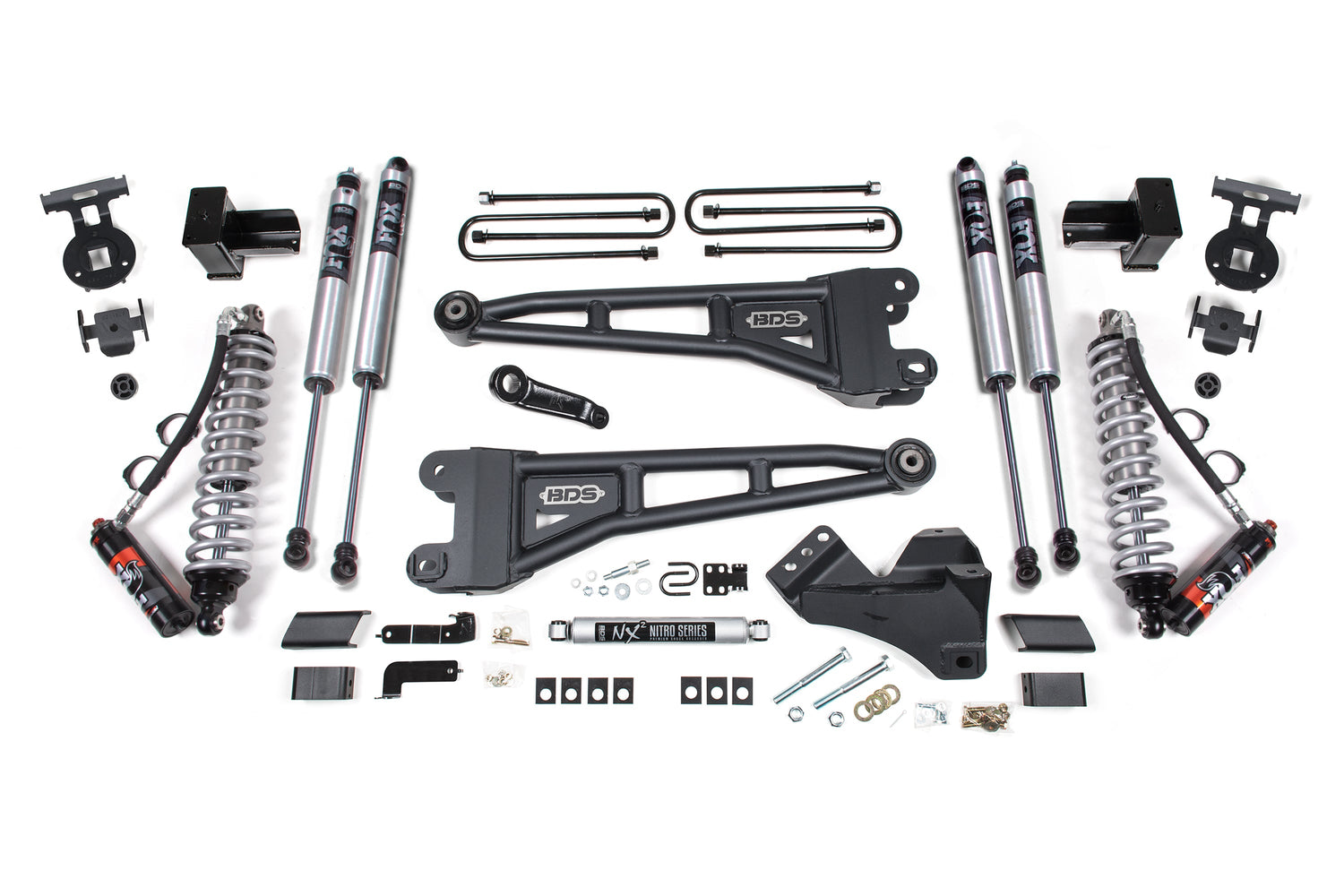

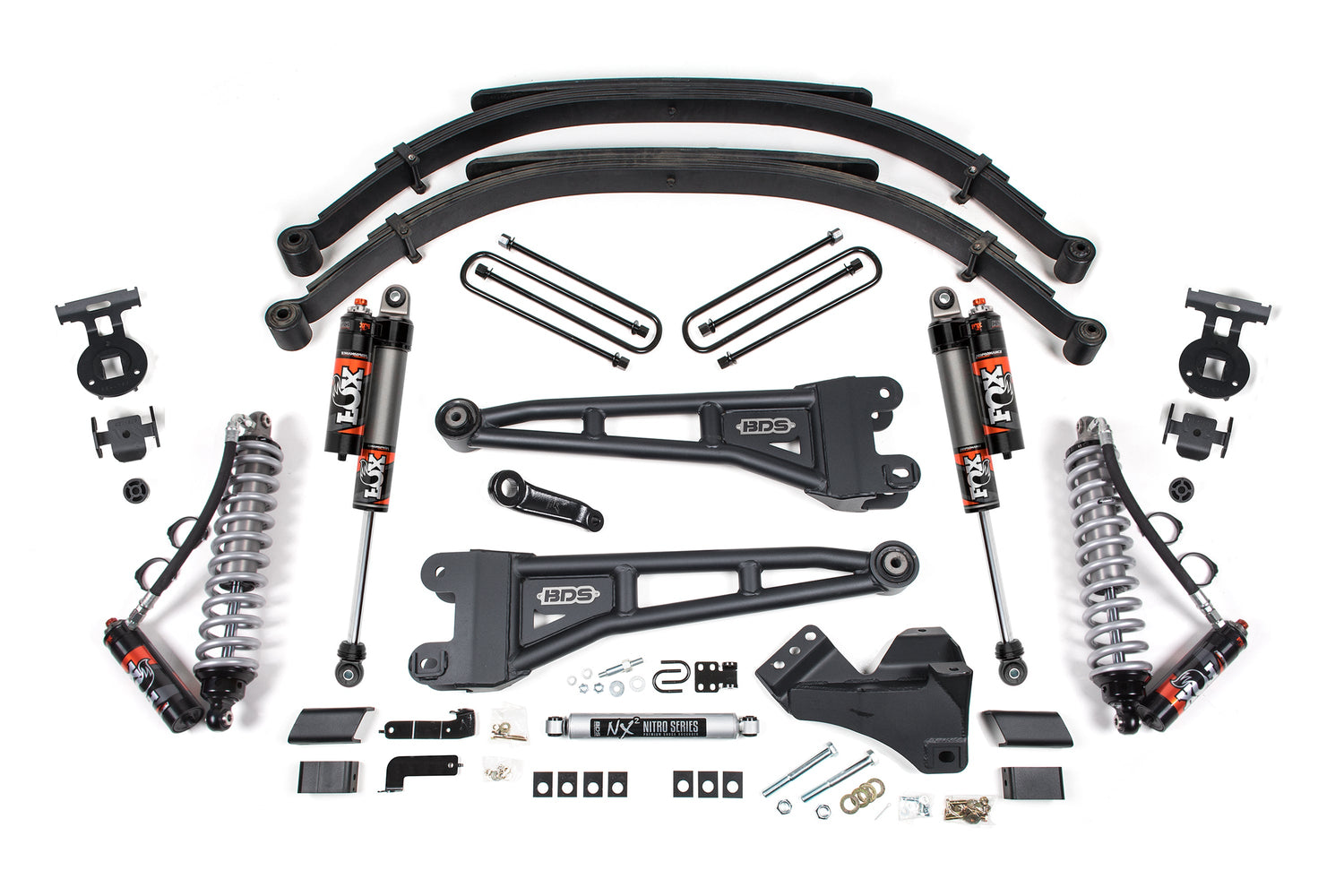

5 Inch Lift Kit W/ Radius Arm - FOX 2.5 Coil-Over Conversion - Performance Elite - Ford F250/F350 Super Duty (23-24) 4WD - Diesel

To optimize steering geometry once lifted a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.

• FOX 2.5 Coil-Over mounts in factory coil bucket location
• Adds additional secondary FOX 2.0 shock for max performance
• Eibach coil springs ride smooth through the roughest terrain
• Heavy duty tubular steel radius arms that correct caster while maximizing ground clearance
• Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
• Fabricated steel blocks provide level stance from front to rear
• FOX shocks are fully serviceable and resistant to corrosion and harsh environments

Attributes:

• Brand Name: BDS Suspension
• GTIN: 00840416413762
• Front Lift Height: 5
• Front Lift Method: Coil Over
• Installation Difficulty: veryDifficult
• Installation Time: 8-10 Hrs
• Installation Tools: drill-puller pitmanArm-saw reciprocating
• Rear Lift Height: 4
• Rear Lift Method: Leaf Spring
• Rear Lift Option: Leaf Springs
• Shocks Included0: Yes

Extended Information:

• Country of Origin: US
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Weight: 0 lb
