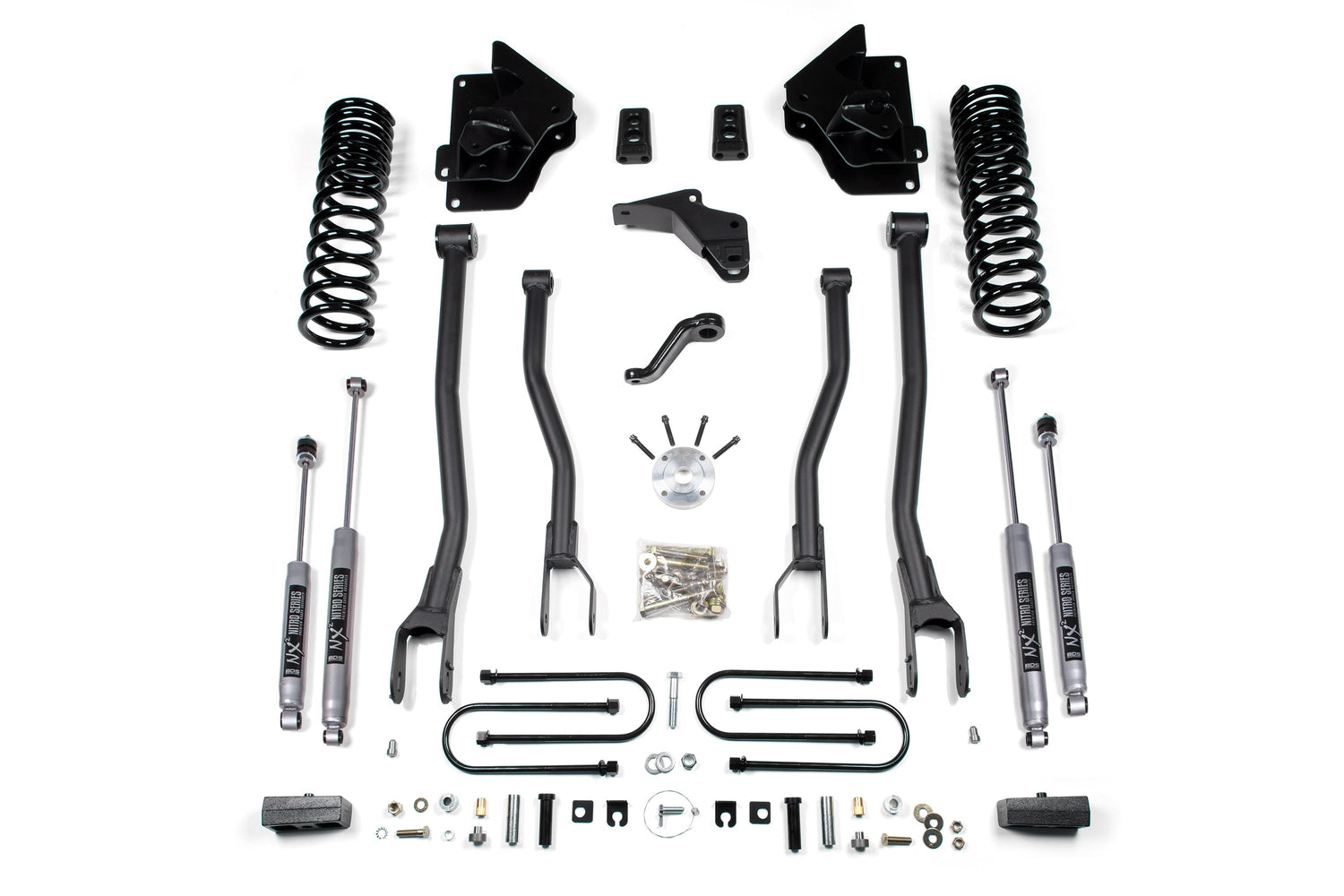

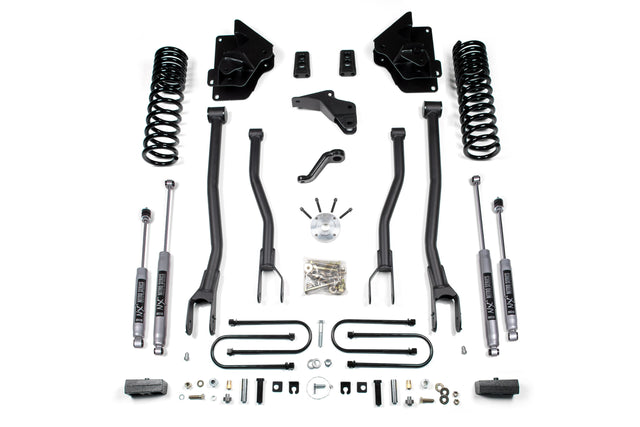

4 Inch Lift Kit W/ 4-Link - Ram 3500 (13-18) 4WD - Diesel

To optimize steering geometry once lifted a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.

• Heavy duty 4-link improve strength handling and caster control
• Front high strength progressive rate coil springs for a great ride on any terrain
• Front track bar relocation bracket to re-position axle
• Forged drop pitman arm to correct steering angles
• Front sway bar correction to maintain handling performance
• BDS NX2 gas or FOX performance series IFP gas shocks to improved ride and offroad performance

Attributes:

• Brand Name: BDS Suspension
• GTIN: 00840416420036
• Front Lift Height: 4
• Front Lift Method: Coil Spring
• Installation Difficulty: moderate
• Installation Time: 10 Hrs
• Installation Tools: bit unibit Step Drill Bit-drill-puller pitmanArm-welder
• Rear Lift Height: 3
• Rear Lift Method: Block
• Rear Lift Option: 3 Inch Block Kit
• Shocks Included0: Yes

Extended Information:

• Country of Origin: US
• Emissions : 4
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Weight: 0 lb
