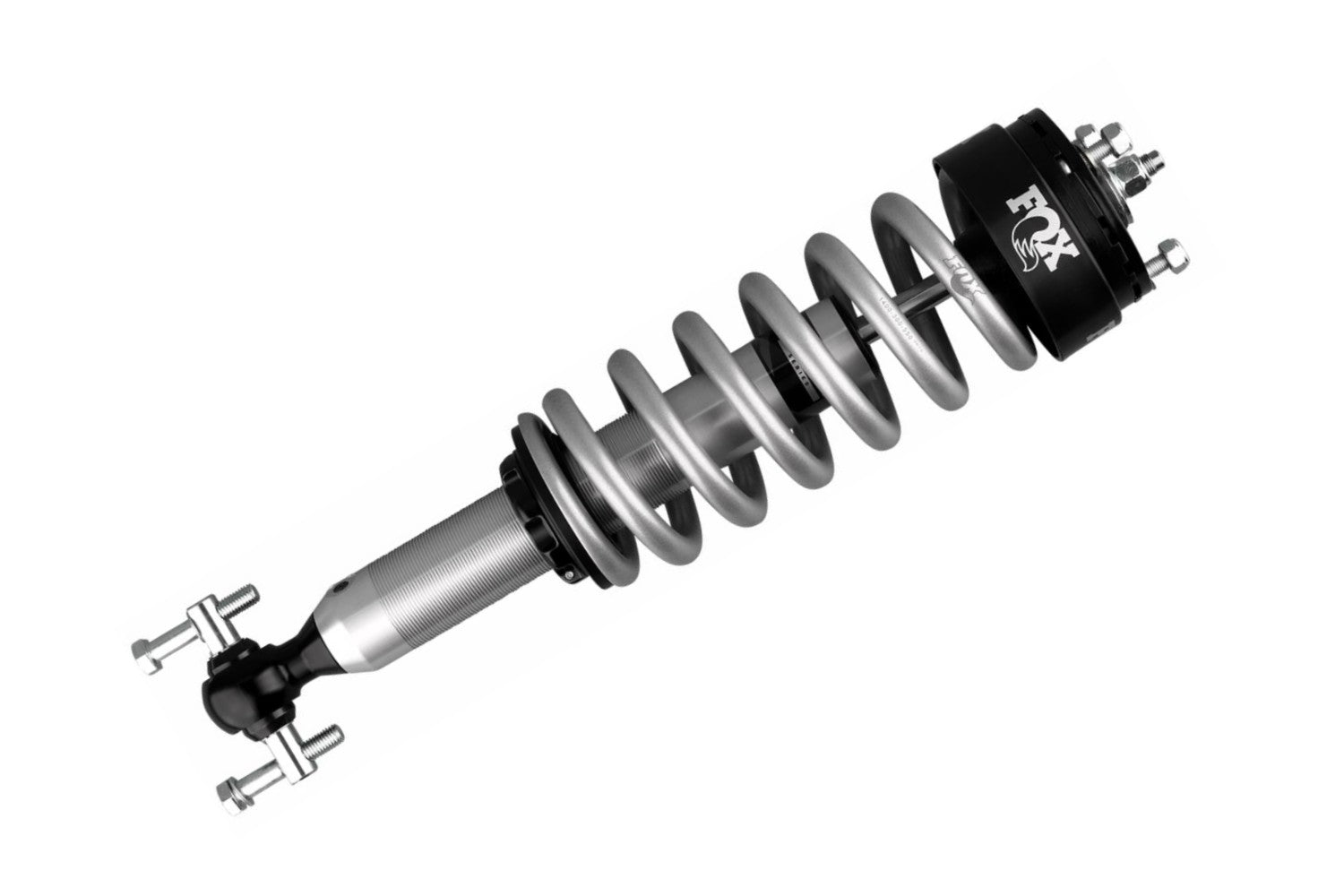

FOX 2.0 Coil-Over IFP Shock - 0-3 Inch Lift - Performance Series - Ford Ranger (19-23) 18.5 lb

Locking spring preload rings that allow easy ride height and preload adjustment retain a top-quality racing coil selected to deliver the optimal spring rate. FOX shocks bolt on with no modifications and are designed to level your truck front-to-rear. The metal impact-extruded aluminum body increases cooling capacity and resists rust. Vehicle-specific upper mount includes a composite bushing that isolates noise and vibration.

• 2-inch Impact extruded and CNC machined 6061-T6 clear anodized aluminum one-piece body resists rust over time
• 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Internal IFP mono-tube reservoir design

Attributes:

• Brand Name: BDS Suspension
• GTIN: 00788000424551
• Adjustable1: Yes
• Compressed Length4: 15.0000
• Cylinder Diameter2: 2
• Cylinder Material7: Aluminum
• Extended Length5: 19.3900
• Gas Charged: Yes
• Installation Time: 2-3 Hrs
• Lower Mount Code: TM
• Lower Mount Type: Bar Pin
• Pvg Product Status: Active
• Shaft Diameter8: 5_8
• Shaft Material: Chrome Plated Steel
• Shocks Included3: No
• Travel Length6: 4.3900
• Type: Coil Over
• Upper Mount Code0: OEM
• Upper Mount Type: TM

Extended Information:

• Country of Origin: US
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 30.0000 x 6.0000 x 6.0000 inches
• Weight: 18.5000 lb
